Type : Coil. Pigtail (Q), U Connection : BSPP, NPT etc. Material : SS304, SS316, SS316L etc. Pressure : According pipe size & schedule

The AFRA AF-TE-720 RTD Calibrator is a precision instrument designed for accurate resistance and temperature calibration. Supporting multiple RTD types and offering high accuracy performance, it is ideal for industrial, laboratory, and field applications. Its dual display and user-friendly design ensure efficient and reliable calibration tasks.   Key Features WIDE CALIBRATION RANGE – Resistance up to 3200Ω and temperature from -200°C to 800°C MULTIPLE RTD SUPPORT – Select from 7 RTD types for flexible applications HIGH PRECISION PERFORMANCE – Accuracy up to ±0.2°C and ±0.1Ω DUAL LCD DISPLAY – Large 5-digit screen for clear and simultaneous readings CONTINUOUS OPERATION – External power supply support for extended usage Functions RTD Signal Measurement & Simulation Multi-Type RTD Selection High Accuracy Calibration Dual Display Monitoring External Power Support Package Includes Process Calibrator ×1 Test Leads ×1 Alligator Clips ×1 User Manual ×1 AAA Batteries (1.5V) ×6 Carry Bag ×1 Box ×1 Calibration Report

Short Description The AFRA AF-TE-8051 Light Meter is a precision instrument designed to measure light intensity with high accuracy. Featuring a rotary sensor head and wide measurement range, it is ideal for photography, industrial, and environmental lighting applications. Key Features WIDE LIGHT MEASUREMENT RANGE – Measures from 0 to 30,000 lux (0–2788 ftc) ROTARY SENSOR HEAD – Flexible positioning for accurate light detection HIGH ACCURACY PERFORMANCE – Reliable readings with ±(4% + 50) accuracy FAST SAMPLING RATE – Real-time updates at 2 times per second USER-FRIENDLY DESIGN – Backlit display, data hold, and auto power-off Specifications Measurement Range: 0–30,000 lux (0–2788.0 ftc) Accuracy: ±(4% + 50) Resolution: 1 lux / 0.1 ftc Max Display: 29999 Sampling Rate: 2 times/sec Operating Temperature: 0°C to 50°C (32°F to 122°F) Display: Backlit LCD Power Supply: 3 × AAA Batteries Package Includes Light Meter ×1 Protective Cover ×1 Carry Case ×1 Wrist Strap ×1

Connection : Fixed, Adjustable, Nipple, N-U-N, Flanged & Threaded Element : Pt100, Pt500 & Pt1000 Accuracy : Class A, Class B Sheath : Mineral Insulated Cable Enclosure : Aluminium, SS with IP65, IP66, IP67, IP68, Ex-proof, Flameproof, ATEX

Type : Adjustable Screw Connection : BSPP, NPT etc. Material : SS304, SS316, SS316L, Monel, Hastelloy 'C-276' etc. Pressure : 400bar

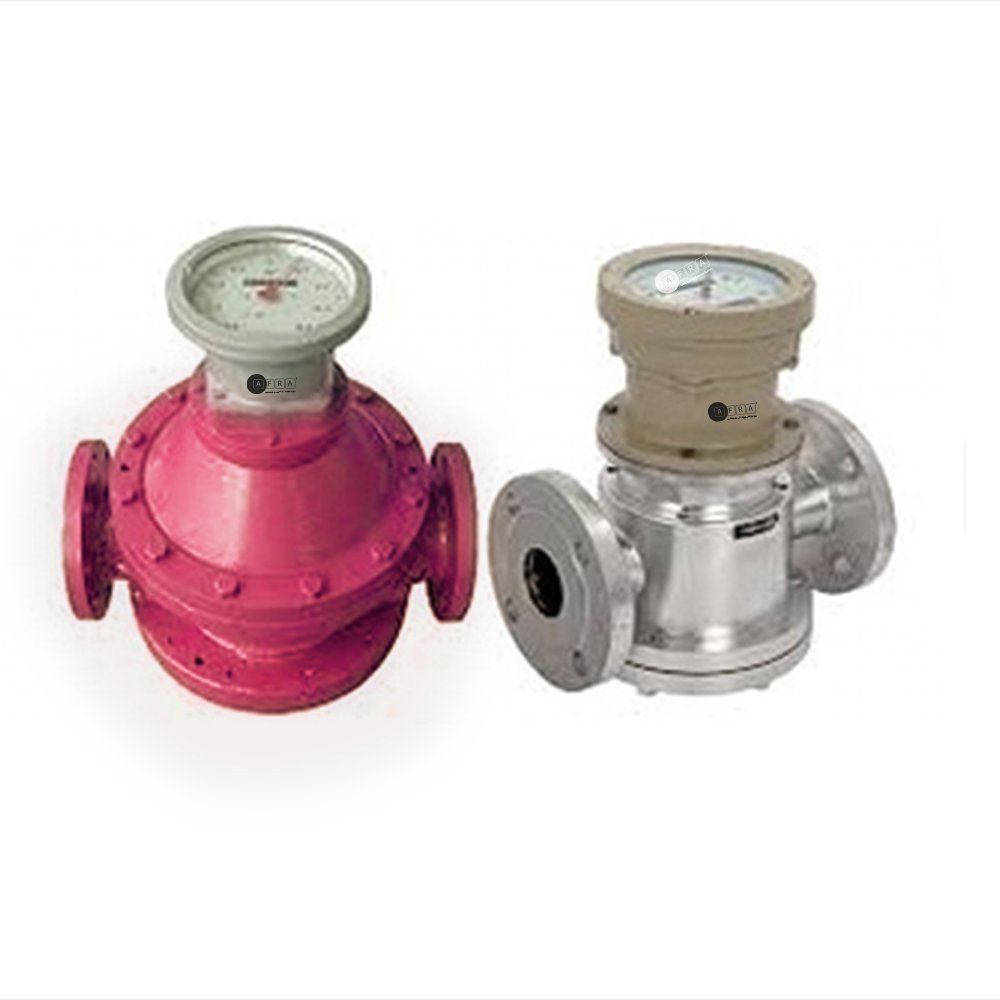

Sizes : M-5®, M-7®, M-10®, M-15®, M-25®, M-30®, M-40®, M-60®, M-80® Max Capacity : 800 GPM / 3,028 LPM (180 M3/hr) Max Pressure : 150 PSI / 10.3 Bar / 1034 kPa Max Viscosity : 30-1,500,000 SSU, or 1cP to 325,000cP Temperature Range : -40°F to 160°F

Dial Size : 4.5” Ranges : -1 to 0....0.6 to 2100 bar Wetted Parts : SS 316L & Monel Mounting : Bottom, Back and with mounting bracket accessories Stem Mounting : Accuracy : CL 0.5 Dampening Liquid : Dry, Fillable & Filled Standard followed : ANSI B40.1

The AFRA AF-TE-1020 pH Meter is a compact and accurate device designed for measuring pH levels in liquids. With automatic temperature compensation and waterproof design, it ensures reliable performance for laboratory, industrial, and water testing applications. Key Features WIDE pH MEASUREMENT RANGE – Accurate readings from 0.0 to 14.0 pH AUTOMATIC TEMPERATURE COMPENSATION – Ensures consistent accuracy in varying conditions 3-POINT AUTO CALIBRATION – Quick calibration with standard buffer values WATERPROOF & PORTABLE DESIGN – IP65 protection with pen-style portability USER-FRIENDLY OPERATION – Backlit display, data hold, and simple controls Specifications pH Range: 0.0–14.0 pH Accuracy: ±0.1 pH Temperature Range: 0°C to 50°C Calibration Points: pH 4.01 / 6.86 / 9.18 Display: Backlit LCD Protection Rating: IP65 Power Supply: 2 × AAA Batteries Package Includes pH Meter ×1 Carry Bag ×1 User Manual ×1 Batteries (AAA) ×2 Box ×1
