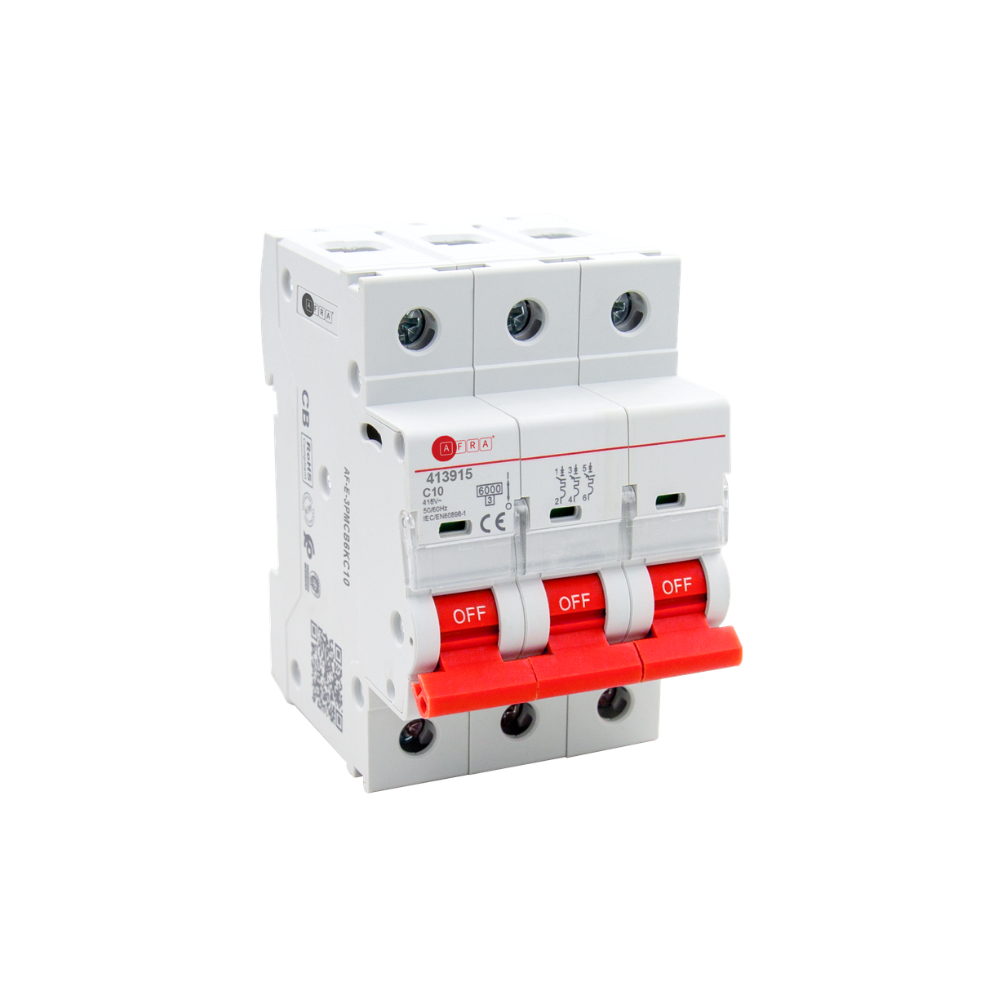

AFRA TSB3-63 3P 10A MCB provides reliable overload and short-circuit protection for three-phase electrical systems, ensuring safe and stable operation in residential, commercial, and industrial applications. Key Features Brand: AFRA Type: MCB (Miniature Circuit Breaker) Model: TSB3-63 / AF-E-3PMCB6KC10 Poles: 3P (Three Pole) Rated Current: 10A Rated Voltage: 415V AC Curve Type: C Curve Trip Technology: Thermal-magnetic Rated Short-Circuit Capacity (Icn): 6kA (up to 40A; 4.5kA for 50A–63A) Rated Insulation Voltage (Ui): 415V AC Impulse Withstand Voltage (Uimp): 4000V Mechanical Durability: 10,000 cycles Electrical Durability: 4,000 cycles Tightening Torque: M5 – 2.5 N·m Protection Degree: IP20 (device), IP40 (in enclosure) Ambient Temperature: -5°C to 40°C Pollution Degree: 2 Compliance: EU RoHS Directive Compliant Standards: IEC/EN 60898-1 Wiring: Upper and lower wiring compatible Application: Overload and short-circuit protection for three-phase systems

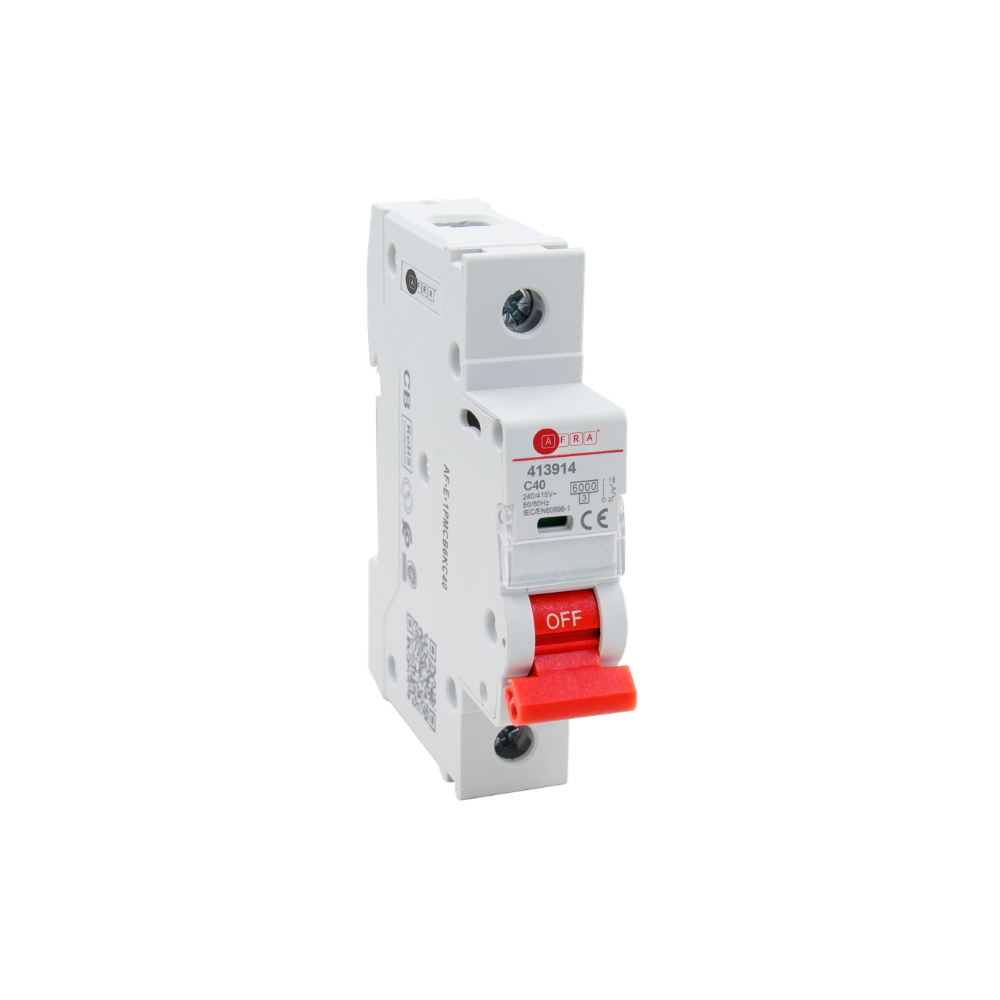

AFRA TSB3-63 1P 40A MCB provides reliable overload and short-circuit protection for single-phase electrical systems, ensuring safe and stable operation in residential and commercial applications. Key Features Brand: AFRA Type: MCB (Miniature Circuit Breaker) Model: TSB3-63 / AF-E-1PMCB6KC40 Poles: 1P (Single Pole) Rated Current: 40A Rated Voltage: 230/240V AC Curve Type: C Curve Trip Technology: Thermal-magnetic Rated Short-Circuit Capacity (Icn): 6kA (up to 40A; 4.5kA for 50A–63A) Rated Insulation Voltage (Ui): 415V AC Impulse Withstand Voltage (Uimp): 4000V Mechanical Durability: 10,000 cycles Electrical Durability: 4,000 cycles Tightening Torque: M5 – 2.5 N·m Protection Degree: IP20 (device), IP40 (in enclosure) Ambient Temperature: -5°C to 40°C Pollution Degree: 2 Compliance: EU RoHS Directive Compliant Standards: IEC/EN 60898-1 Wiring: Upper and lower wiring compatible Application: Overload and short-circuit protection for single-phase systems

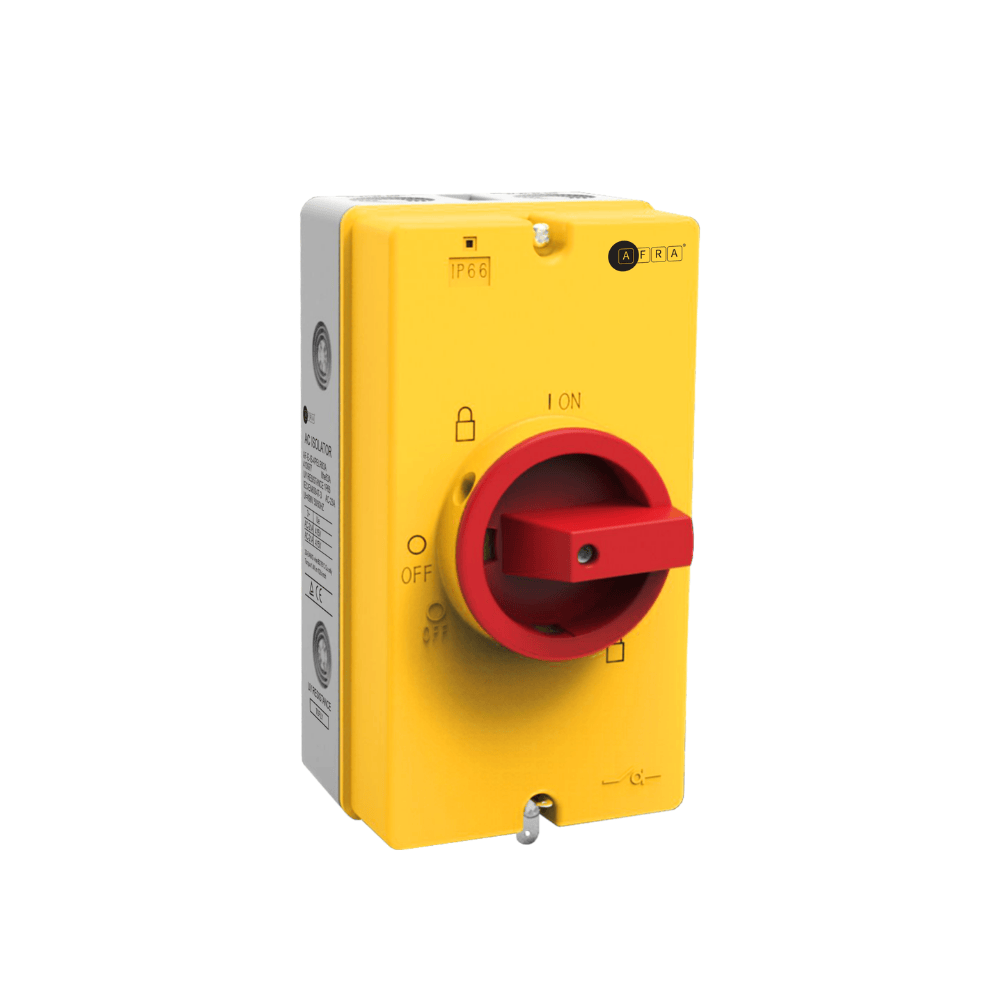

AFRA TSAS69 ELR 4P 63A AC Isolating Switch designed for reliable motor and load control isolation in industrial electrical systems, suitable for 690V applications. Key Features Brand: AFRA Type: AC Isolating Switch (ELR) Model: TSAS69 ELR / AF-E-IS-4PELR63A Poles: 4P (Four Pole) Rated Current: 63A Rated Voltage: Up to 690V AC Utilization Categories: AC-23 / AC-3 AC-23 Rated Current: 45A AC-3 Rated Current: 37A AC-23 Power Rating: 22 kW AC-3 Power Rating: 18.5 kW UL/CSA Motor Load: 20 kW Short-Time Withstand Current: 600A Wire Capacity: 1.0 – 16 mm² Screw Torque: 1.5 – 2 N·m Standard: IEC/EN 60947-3

AFRA TSAS69 ELR 4P 20A AC Isolating Switch designed for safe isolation and motor load control in electrical systems, suitable for 690V industrial applications. Key Features Brand: AFRA Type: AC Isolating Switch (ELR) Model: TSAS69 ELR / AF-E-IS-4PELR20A Poles: 4P (Four Pole) Rated Current: 20A Rated Voltage: Up to 690V AC Utilization Categories: AC-23 / AC-3 AC-23 Rated Current: 16A AC-3 Rated Current: 12A AC-23 Power Rating: 7.5 kW AC-3 Power Rating: 5.5 kW UL/CSA Motor Load: 7.5 kW Short-Time Withstand Current: 250A Wire Capacity: 0.5 – 10 mm² Screw Torque: 0.8 – 1.7 N·m Standard: IEC/EN 60947-3

AFRA TSAS69 ELR 3P 80A AC Isolating Switch designed for heavy-duty circuit isolation and motor load control in industrial electrical systems, suitable for 690V applications. Key Features Brand: AFRA Type: AC Isolating Switch (ELR) Model: TSAS69 ELR / AF-E-IS-3PELR80A Poles: 3P (Three Pole) Rated Current: 80A Rated Voltage: Up to 690V AC Utilization Categories: AC-23 / AC-3 AC-23 Rated Current: 45A AC-3 Rated Current: 37A AC-23 Power Rating: 22 kW AC-3 Power Rating: 18.5 kW UL/CSA Motor Load: 20 kW Short-Time Withstand Current: 850A Wire Capacity: 1.0 – 16 mm² Screw Torque: 1.5 – 2 N·m Standard: IEC/EN 60947-3

AFRA TSAS69 ELR 3P 63A AC Isolating Switch designed for safe isolation and motor load control in industrial electrical systems, suitable for 690V applications. Key Features Brand: AFRA Type: AC Isolating Switch (ELR) Model: TSAS69 ELR / AF-E-IS-3PELR63A Poles: 3P (Three Pole) Rated Current: 63A Rated Voltage: Up to 690V AC Utilization Categories: AC-23 / AC-3 AC-23 Rated Current: 45A AC-3 Rated Current: 37A AC-23 Power Rating: 22 kW AC-3 Power Rating: 18.5 kW UL/CSA Motor Load: 20 kW Short-Time Withstand Current: 600A Wire Capacity: 1.0 – 16 mm² Screw Torque: 1.5 – 2 N·m Standard: IEC/EN 60947-3

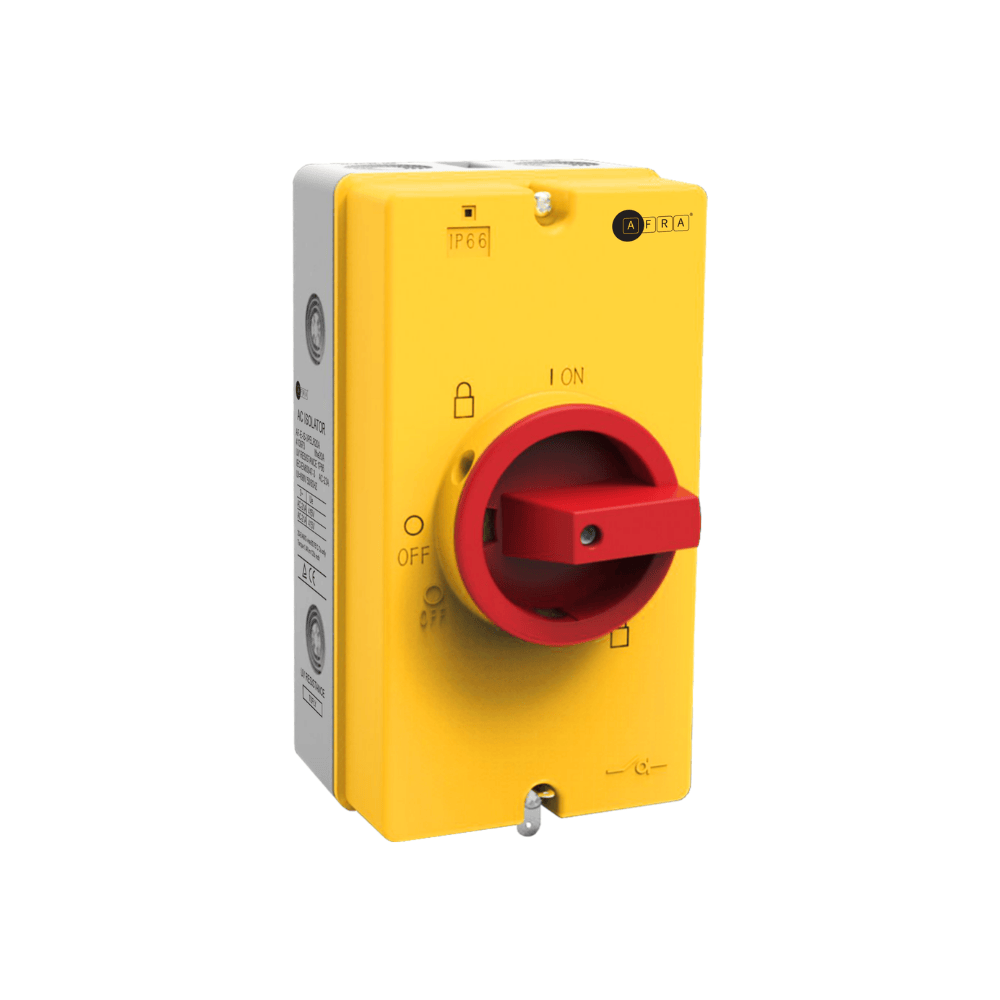

AFRA TSAS69 ELR 3P 20A AC Isolating Switch designed for safe circuit isolation and motor load control in electrical systems, suitable for 690V industrial applications. Key Features Brand: AFRA Type: AC Isolating Switch (ELR) Model: TSAS69 ELR / AF-E-IS-3PELR20A Poles: 3P (Three Pole) Rated Current: 20A Rated Voltage: Up to 690V AC Utilization Categories: AC-23 / AC-3 AC-23 Rated Current: 16A AC-3 Rated Current: 12A AC-23 Power Rating: 7.5 kW AC-3 Power Rating: 5.5 kW UL/CSA Motor Load: 7.5 kW Short-Time Withstand Current: 250A Wire Capacity: 0.5 – 10 mm² Screw Torque: 0.8 – 1.7 N·m Standard: IEC/EN 60947-3

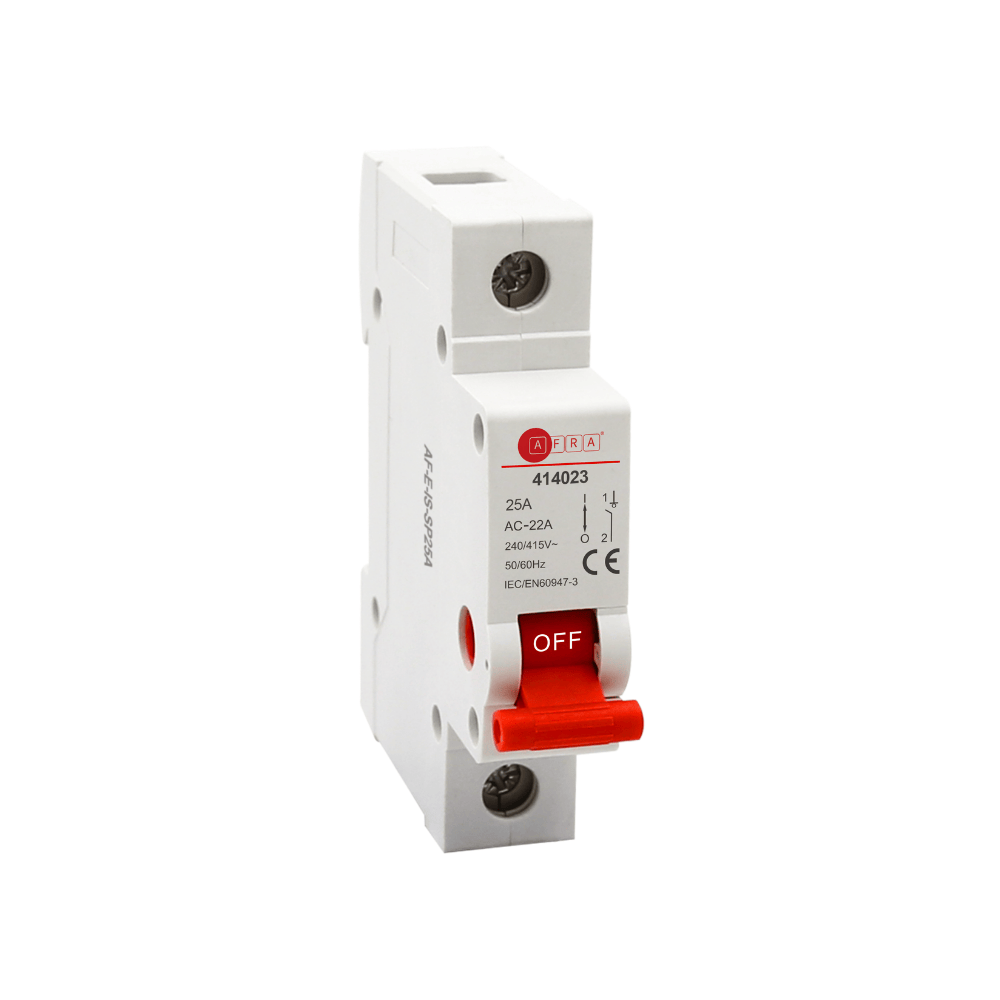

AFRA SP-25A 1P DIN Rail Mounted Isolator Switch designed for safe and reliable circuit isolation in residential, commercial, and light industrial electrical systems, rated for 230/400V AC operation with durable performance. Key Features Brand: AFRA Type: Isolator Switch Model: SP-25A / AF-E-IS-SP25A Poles: 1P (Single Pole) Rated Current: 25A (Available range: 16A–125A series) Rated Voltage: 230/400V AC, 240/415V AC Utilisation Category: AC-22A Rated Short-Circuit Making Capacity (Icm): 5 kA Rated Short-Time Withstand Current (Icw): 1500A Insulation Voltage (Ui): 250V AC Impulse Withstand Voltage (Uimp): 6000V Mechanical Durability: 8500 cycles Electrical Durability: 1500 cycles Tightening Torque: M6 – 3.5 N·m Protection Degree: IP20 (device), IP40 (in enclosure) Ambient Temperature: -5°C to 40°C Pollution Degree: 2 Mounting Type: DIN Rail Mounted Standard: IEC/EN 60947-3 Wiring: Upper and lower wiring compatible

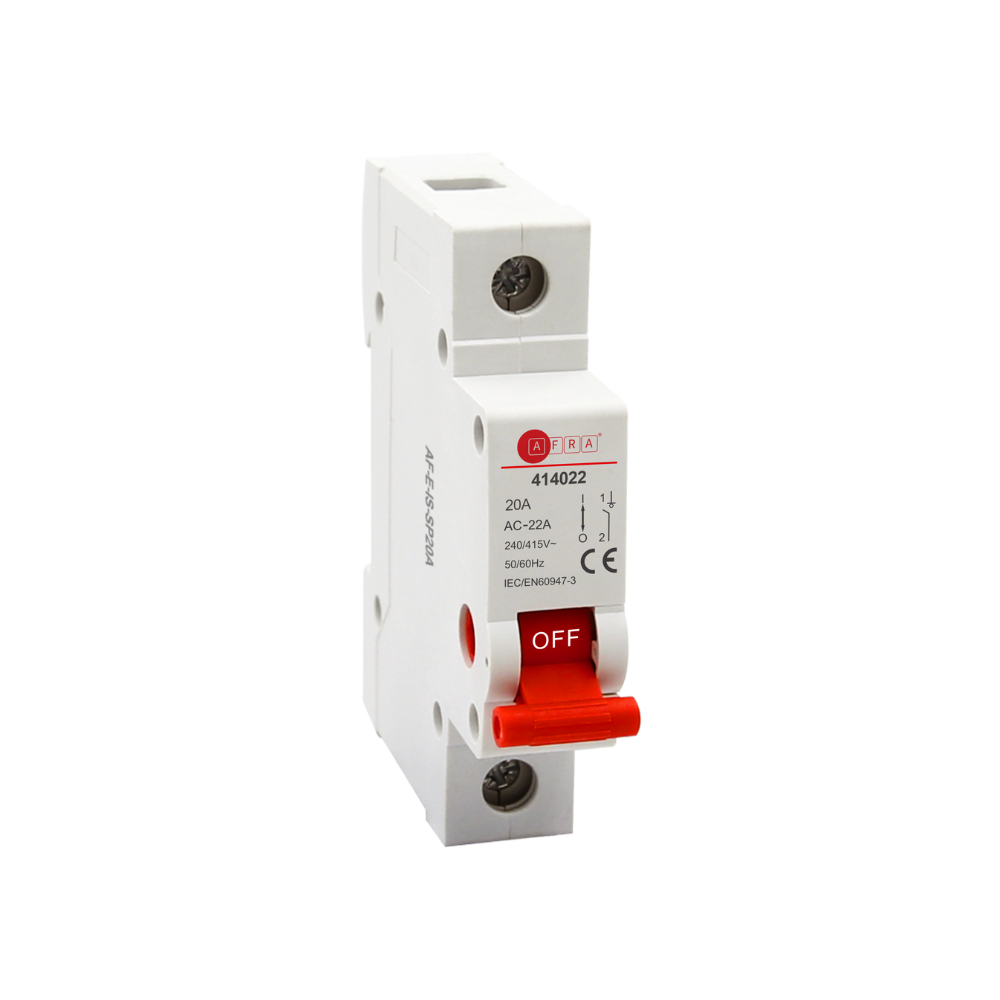

AFRA SP-20A 1P DIN Rail Mounted Isolator Switch designed for safe circuit isolation in residential, commercial, and industrial electrical installations, rated for 230/400V AC operation with reliable performance and durability. Key Features Brand: AFRA Type: Isolator Switch Model: SP-20A / AF-E-IS-SP20A Poles: 1P (Single Pole) Rated Current: 20A (Available range: 16A–125A series) Rated Voltage: 230/400V AC, 240/415V AC Utilisation Category: AC-22A Rated Short-Circuit Making Capacity (Icm): 5 kA (switch-disconnector alone) Rated Short-Time Withstand Current (Icw): 1500A Insulation Voltage (Ui): 250V AC Impulse Withstand Voltage (Uimp): 6000V Mechanical Durability: 8500 cycles Electrical Durability: 1500 cycles Tightening Torque: M6 – 3.5 N·m Protection Degree: IP20 (device), IP40 (in enclosure) Ambient Temperature: -5°C to 40°C Pollution Degree: 2 Compliance: EU RoHS Directive Compliant Mounting Type: DIN Rail Mounted Wiring: Upper and lower wiring compatible Standard: IEC/EN 60947-3
