Construction : Barstock Fabricated Connection : Threaded, Flanged, Vane Stone etc. Material : Alloy Steel, Stainless Steel, Duplex Steel, Nickel Alloys, Superalloys, Titanium, Tantalum

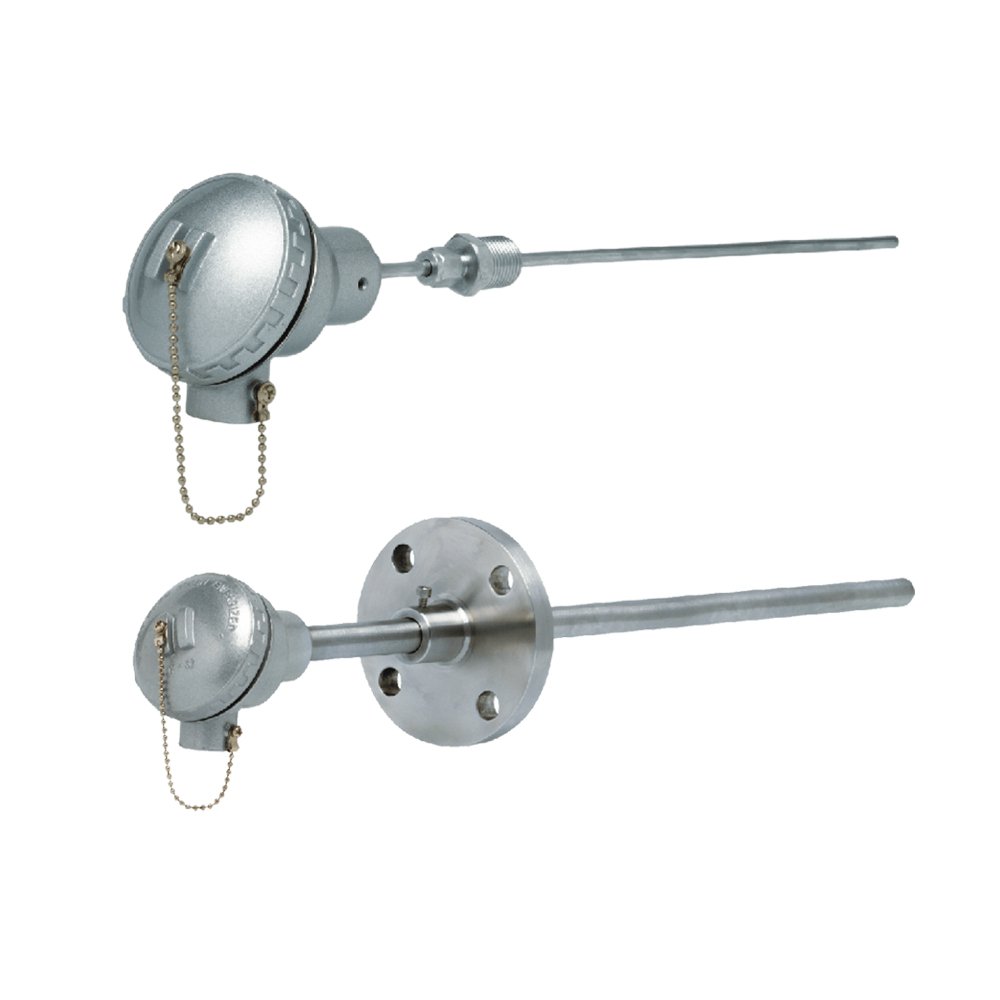

Connection : Fixed, Adjustable, Nipple, N-U-N, Flanged & Threaded Element : J, K, T, E, N, R, S, U, B Accuracy : Class 1 Sheath : Mineral Insulated Cable Sheath : SS 316, SS310, SS446, Inconel 600, Inconel 800 Enclosure : Aluminium, SS with IP65, IP66, IP67, IP68, Ex-proof, Flameproof, ATEX

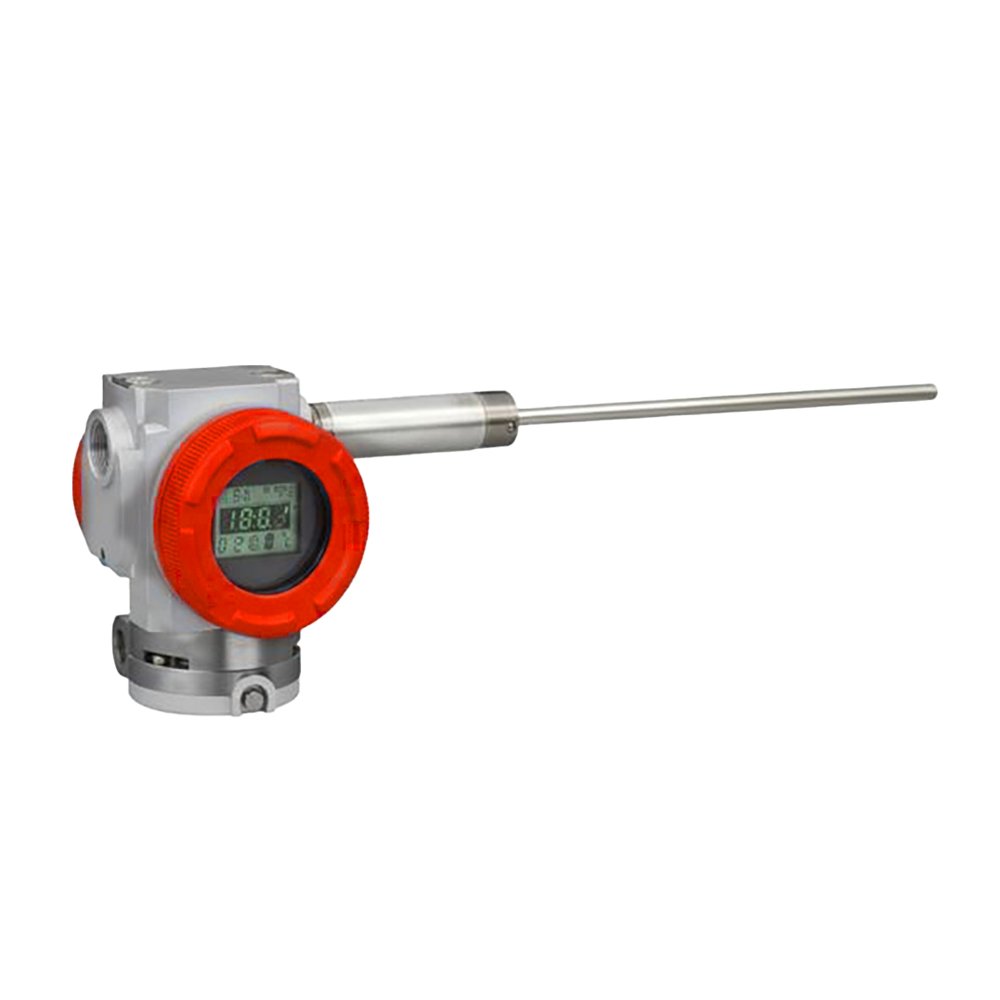

Product : Smart Temperature Transmitter Type : Field mounted Material of Construction : Head Die-cast Aluminum/AISI 316 SS Input : Thermocouple / RTD Output : 4-20 mA HART Zero/Span Adjustment : Potentiometer Galvanic Isolation : 1500 VAC, 1 min Accuracy : (±0.1%) of Span Power Supply : 24 VDC Hazardous Area : ATEX, UL

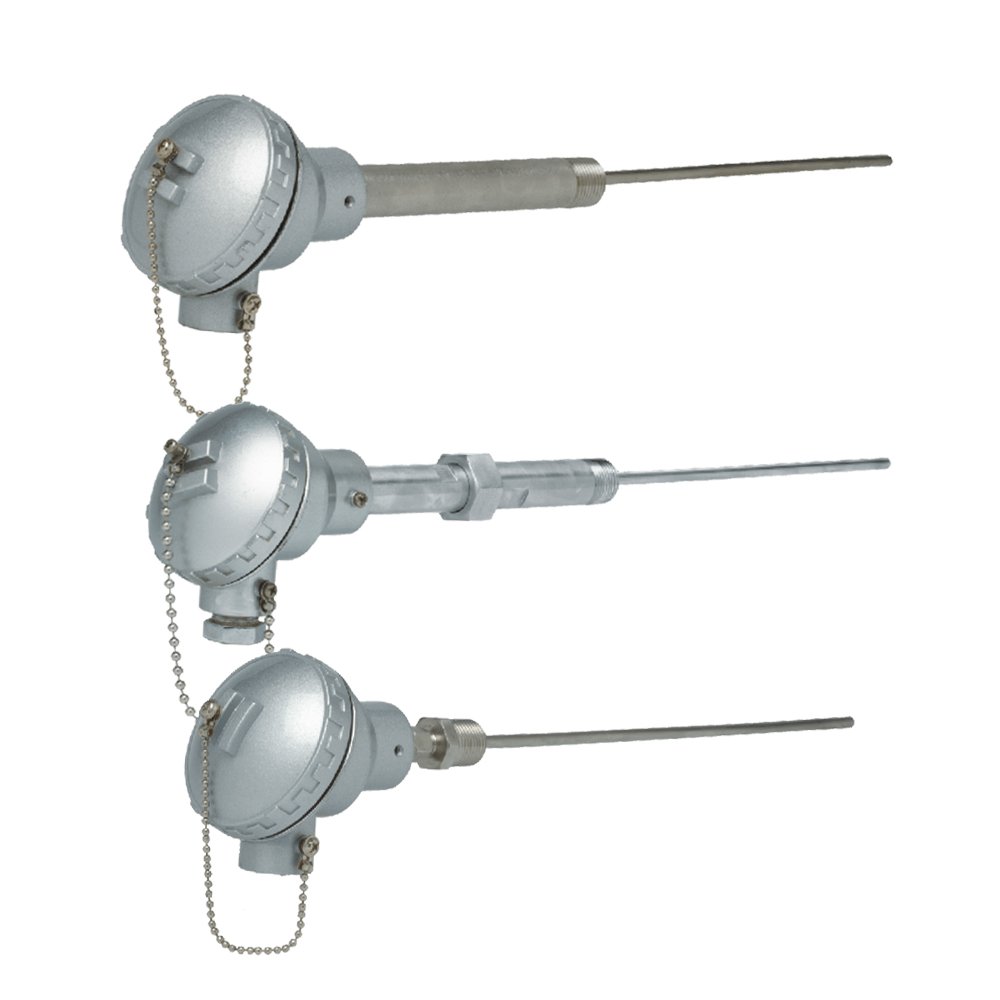

Connection : Fixed, Adjustable, Nipple, N-U-N, Flanged & Threaded Element : Pt100, Pt500 & Pt1000 Accuracy : Class A, Class B Sheath : Mineral Insulated Cable Enclosure : Aluminium, SS with IP65, IP66, IP67, IP68, Ex-proof, Flameproof, ATEX

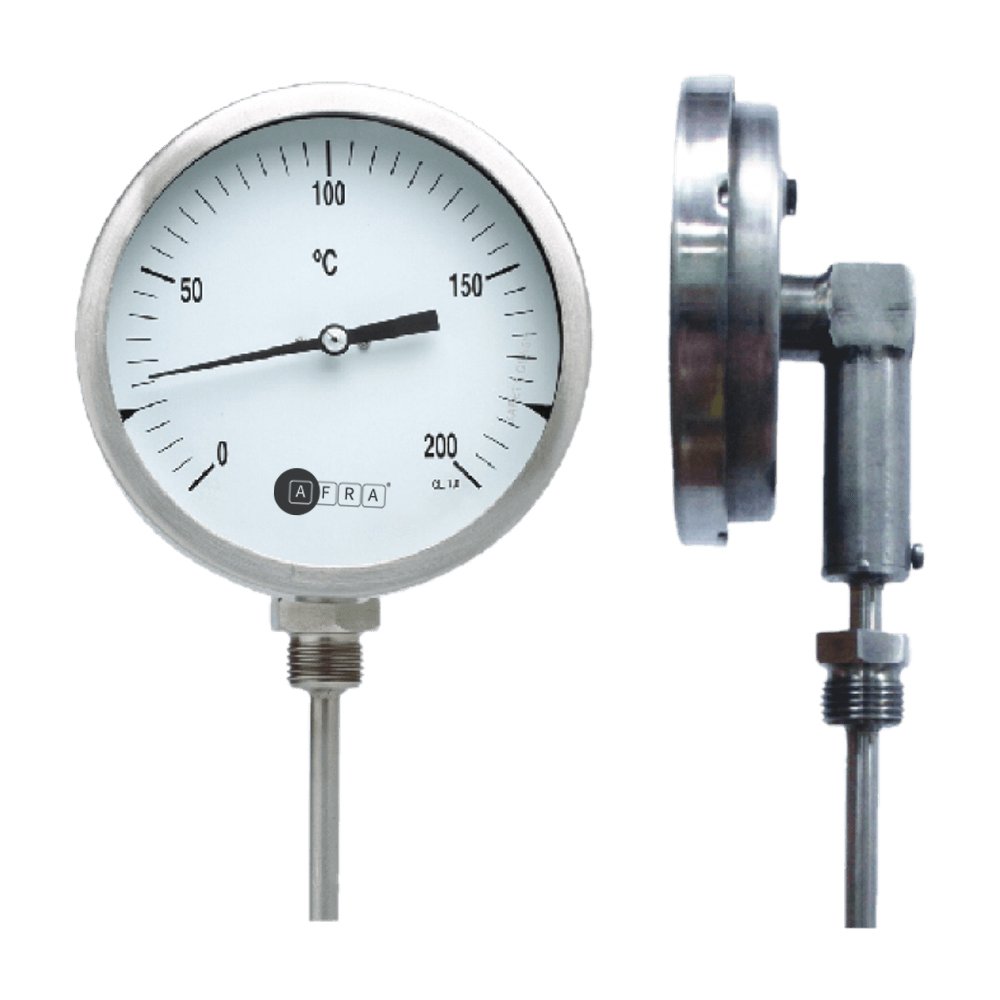

Dial Size : 100mm, 125mm & 150mm Ranges : -100°C to 0... 50°C to 650°C Stem Sizes : 6.0mm, 6.35mm, 8.0mm, 9.5mm, 10mm & 12.0mm Mounting : Bottom, Back & Every Angle with mounting bracket accessories Stem Mounting : With Capillary & without Capillary Accuracy : CL 1.0 Dampening Liquid : Dry, Fillable & Filled Standard followed : EN13190 & other National / International Standards

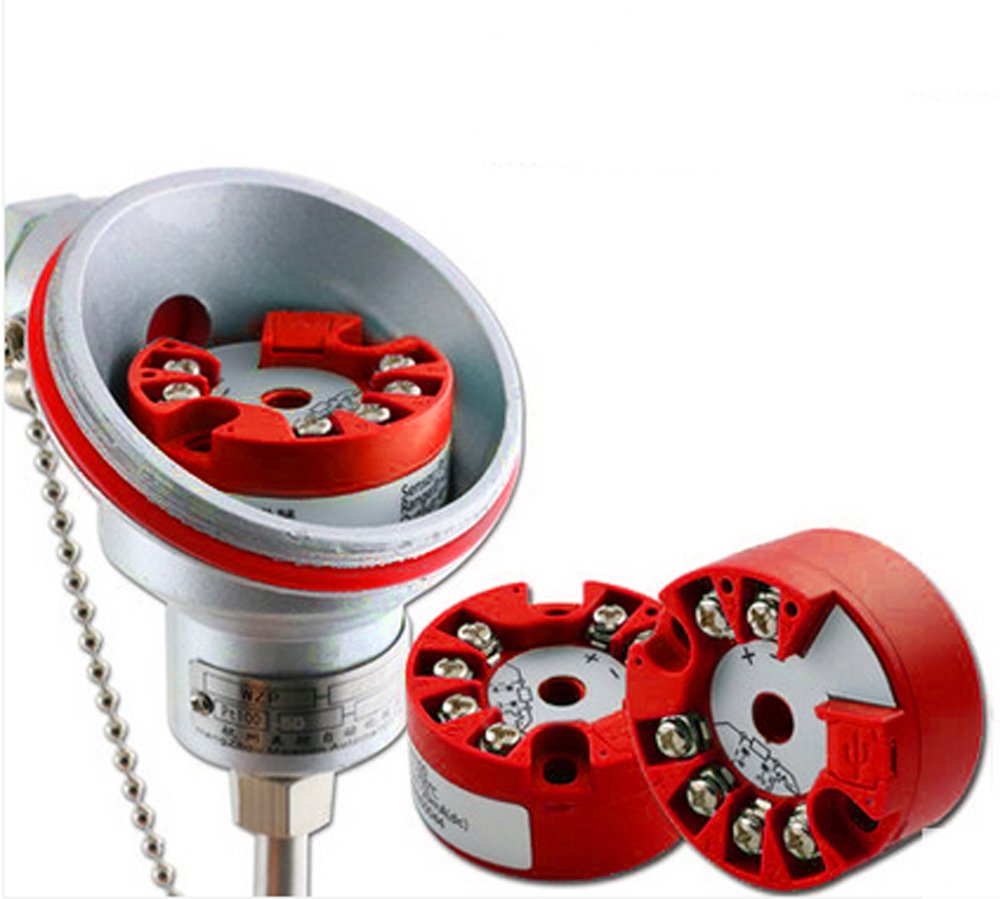

Designed for : RTD PT100 & Thermocouples (Universal input) Output : Signal 4-20mA two wires Configurable measuring ranges Large ambient temperature range Compact and inexpensive

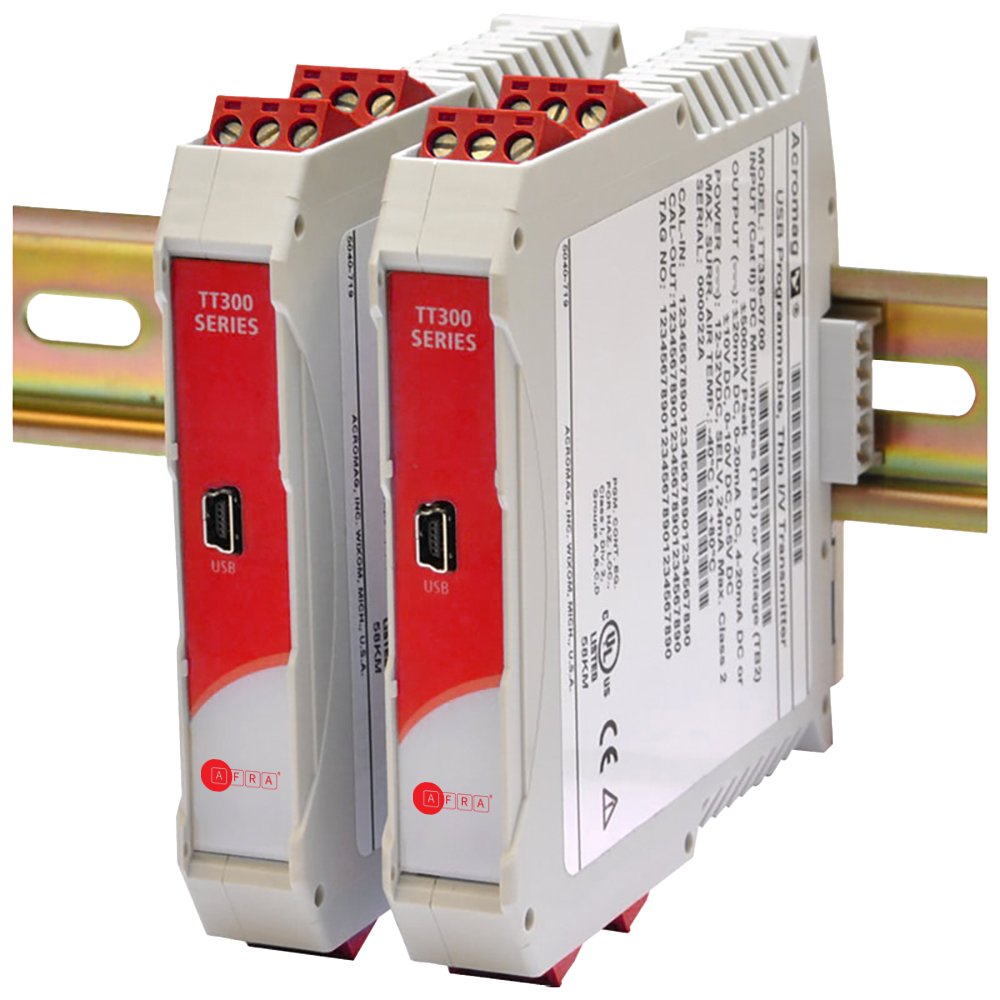

Sensor Range : -200 to 850 °C [18 to 390 Ω] Minimum Span*¹ : 25 °C Measurement Accuracy : ± 0.01 % FRI*³ ± 0.05 % rdg Thermal Drift Zero : 0.008 °C/°C Excitation Current : 300 to 550 µA Span : 0.01 %/°C Accuracy : (±0.1%) of Span Maximum Lead Resistance : 50 Ω/leg Lead Resistance Effect : 0.002°C/Ω

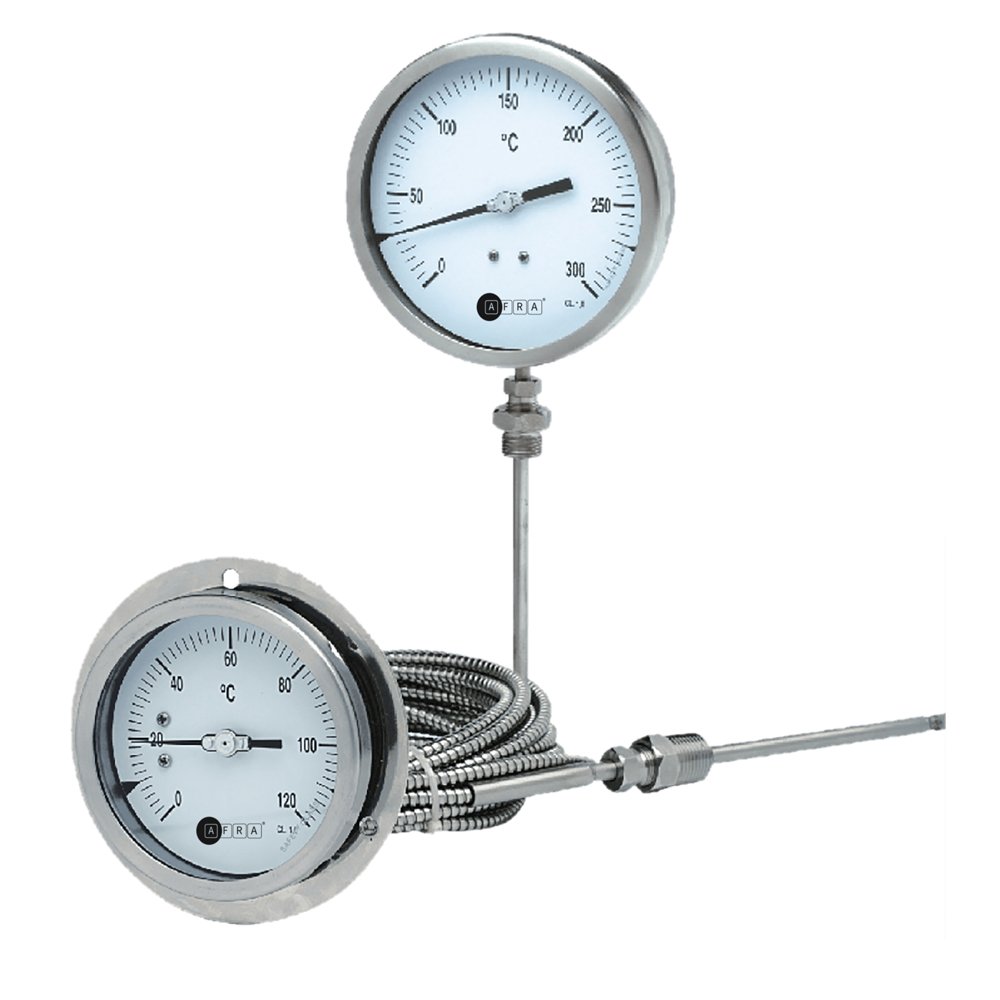

Dial Size : 63mm, 80mm, 100mm, 125mm & 150mm Ranges : -100°C to 0... 50°C to 650°C Stem Sizes : 6.0mm, 6.35mm, 8.0mm, 9.5mm, 10mm & 12.0mm Mounting : Bottom, Back, Elbow & Every Angle Accuracy : CL 1.0 Dampening Liquid : Dry, Fillable & Filled Standard followed : EN13190 & other National / International Standards
