The AF-TE-6817B is a multifunction electrical tester designed to measure voltage, phase sequence, and resistance with high accuracy. Featuring an LCD display with backlight, AC/DC indication, and polarity detection, it ensures safe and reliable performance for professional use. Key Features: Multifunction testing: Voltage, phase sequence, and resistance LCD display with backlight for easy reading AC/DC voltage and polarity indication High measurement accuracy and reliability Safety compliant with EN61010-1 standard Specifications: Contact Voltage: 0 ~ 1000V Resistance Range: 0 ~ 500kΩ ± (1% + 4) AC Frequency Range: 50/60Hz Voltage Range: AC/DC 600V Voltage Accuracy: 1V, ± (1% + 2) Package Includes: Voltage Tester (1 unit) User Manual Protective Box

The AFRA AF-TE-702 Process Calibrator is a high-precision instrument designed for calibration and testing of voltage, current, and thermocouple signals. With advanced input/output capabilities and support for multiple thermocouple types, it is ideal for industrial and field applications. Its intuitive interface, dual display, and programmable functions ensure efficient and accurate calibration tasks. Key Features MULTI-FUNCTION CALIBRATION – Measures and simulates voltage, current, and thermocouple signals WIDE COMPATIBILITY – Supports multiple thermocouple types (K, J, E, T, N, S, R, B) DUAL LCD DISPLAY – Large 5-digit dual screen for clear and simultaneous readings ADVANCED MODES – Includes scan mode, programming mode, and data storage (10 groups) USB CONNECTIVITY – Easy data transfer and interface for enhanced usability Specifications Input & Output Voltage: 0 ~ 100.00mV / 0 ~ 20.000V Input & Output Current: 0 ~ 24.000mA Thermocouple Types:K (CA), J (IC), E (CRC), T (CC), N, S (PR10), R (PR13),

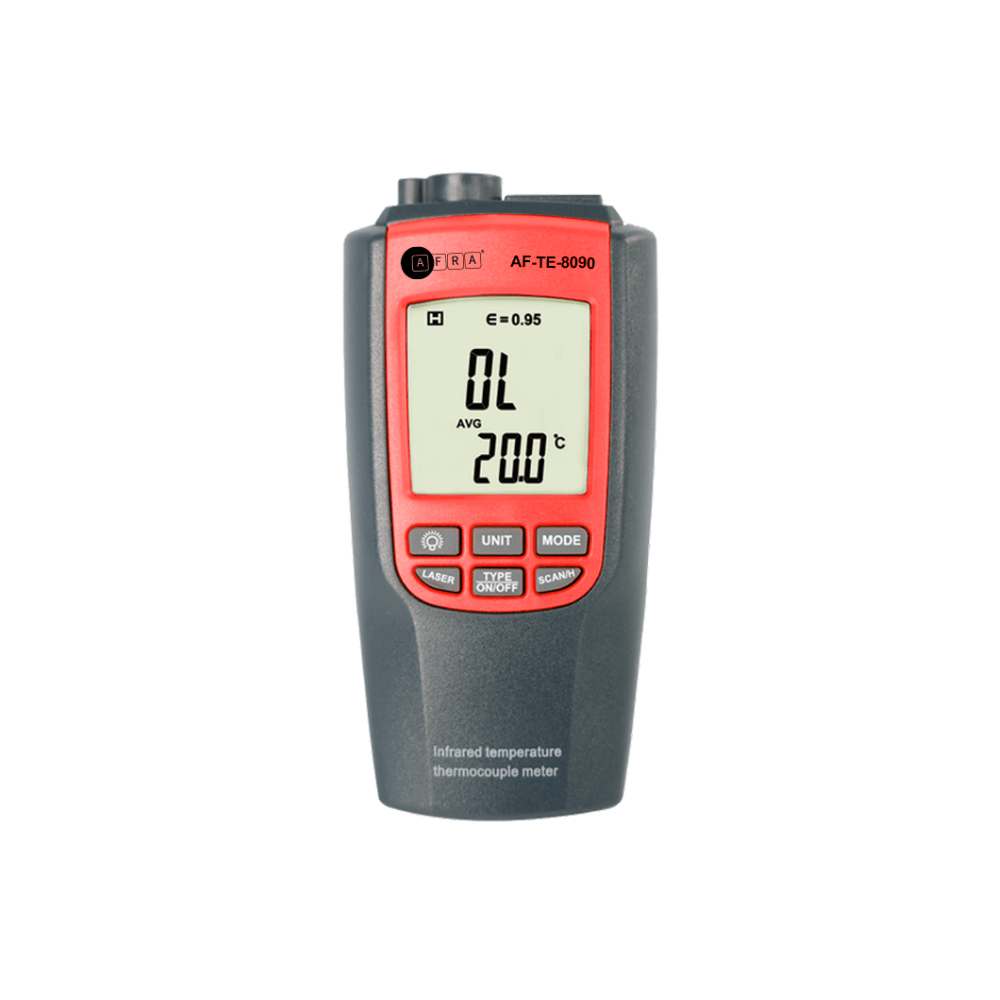

The AF-TE-8090 Thermocouple + Infrared Thermometer is a dual-function environmental measuring device designed for accurate temperature monitoring. It combines contact and non-contact measurement, making it ideal for industrial, HVAC, and maintenance applications. Key Features: Dual measurement: Thermocouple and infrared temperature sensing Fast response time with 0.5s sampling rate Max, Min, and Average value measurement 4-digit LCD display with backlight Data hold function for easy reading Fixed emissivity of 0.95 for reliable infrared readings Specifications: Model: AF-TE-8090 Thermocouple Range: -200°C ~ 1300°C (-328°F ~ 2372°F) Infrared Range: -50°C ~ 300°C (-58°F ~ 572°F) Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) Sample Rate: 0.5s Emissivity: 0.95 Package Includes: Thermometer x1 K-Type Thermocouple x1 Protective Cover x1 Protective Carry Case x1 Wrist String x1 User Manual x1 AAA Battery (1.5V) x3 Box x1

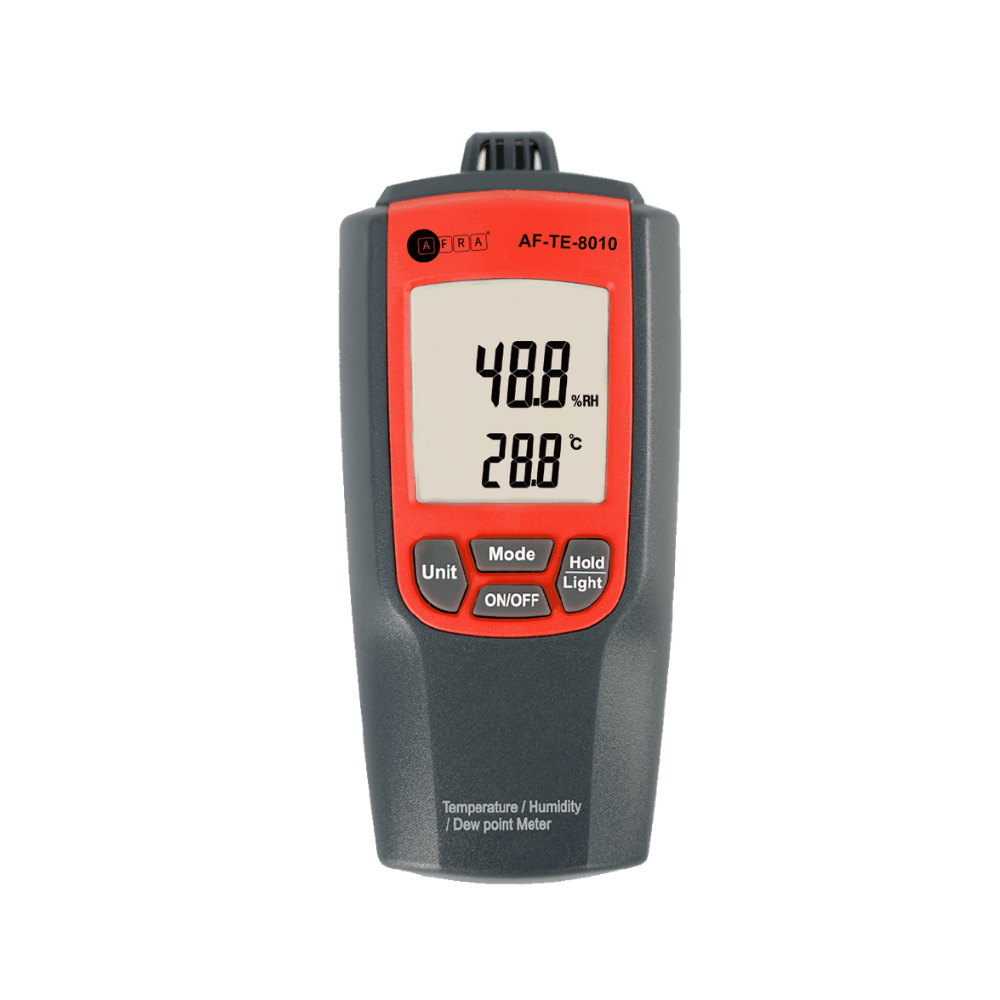

The AF-TE-8010 Temperature & Humidity Meter with Dew Point is a compact and accurate environmental measuring device designed for real-time monitoring of temperature, humidity, and dew point conditions. Ideal for HVAC, laboratories, warehouses, and indoor climate analysis. Key Features: Measures temperature, humidity, and dew point Fast response with 2 readings per second sampling rate 4-digit LCD display with backlight Data hold and auto power-off function High accuracy humidity and temperature sensing Portable design with protective cover and case Specifications: Model: AF-TE-8010 Temperature Range: -10°C ~ 50°C (14°F ~ 122°F) Humidity Range: 0 ~ 100% RH Temperature Accuracy: ±1.0°C / ±1.8°F Humidity Accuracy: ±3% RH (20~80% RH) Resolution: 0.1°C / 0.1°F / 0.1% RH Sample Rate: 2 times/second Package Includes: Temperature & Humidity Meter x1 Protective Cover x1 Protective Carry Case x1 Wrist String x1 User Manual x1 AAA Battery (1.5V) x3 Box x1

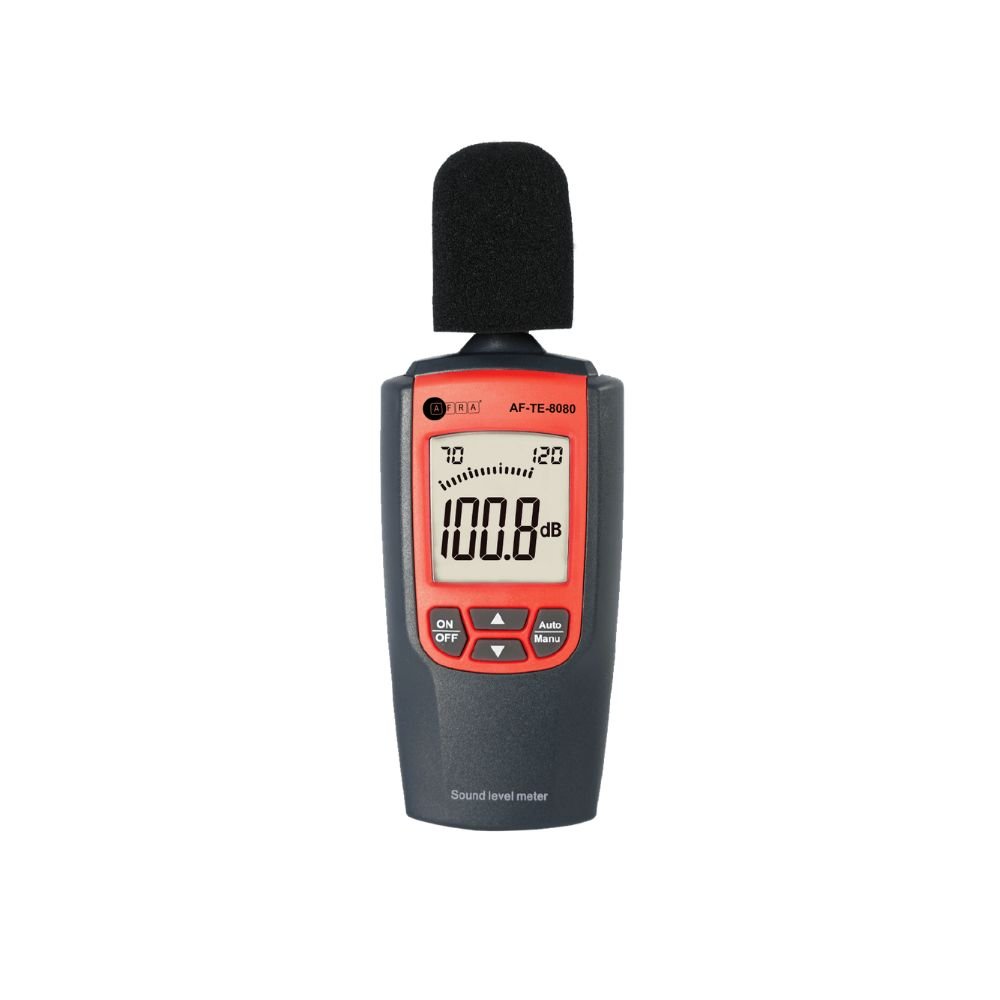

The AFRA AF-TE-8080 Sound Level Meter is a reliable and accurate device designed for measuring noise levels in various environments. With dual measurement ranges and fast response time, it is ideal for industrial, environmental, and workplace noise monitoring. Key Features DUAL RANGE MEASUREMENT – Covers 30–80 dB and 70–120 dB for versatile applications A-WEIGHTED FREQUENCY RESPONSE – Accurate measurement aligned with human hearing FAST RESPONSE DISPLAY – Analog bar (0.25s) and digital display (0.75s) REAL-TIME MONITORING – Analog bar indicator for dynamic sound level tracking USER-FRIENDLY DESIGN – Auto power-off, software calibration, and clear LCD display Specifications Measurement Range: 30–80 dB / 70–120 dB Frequency Range: 31.5Hz–8kHz Frequency Weighting: A-weighted Time Response: Analog 0.25 sec / Digital 0.75 sec Operating Conditions: 0°C–40°C, 10%–90% RH Display: 4-digit LCD with analog bar Power Supply: 3 × AAA Batteries Package Includes Sound Level Meter ×1 Windscreen ×1 Protective Carry Case ×1 Wrist Strap

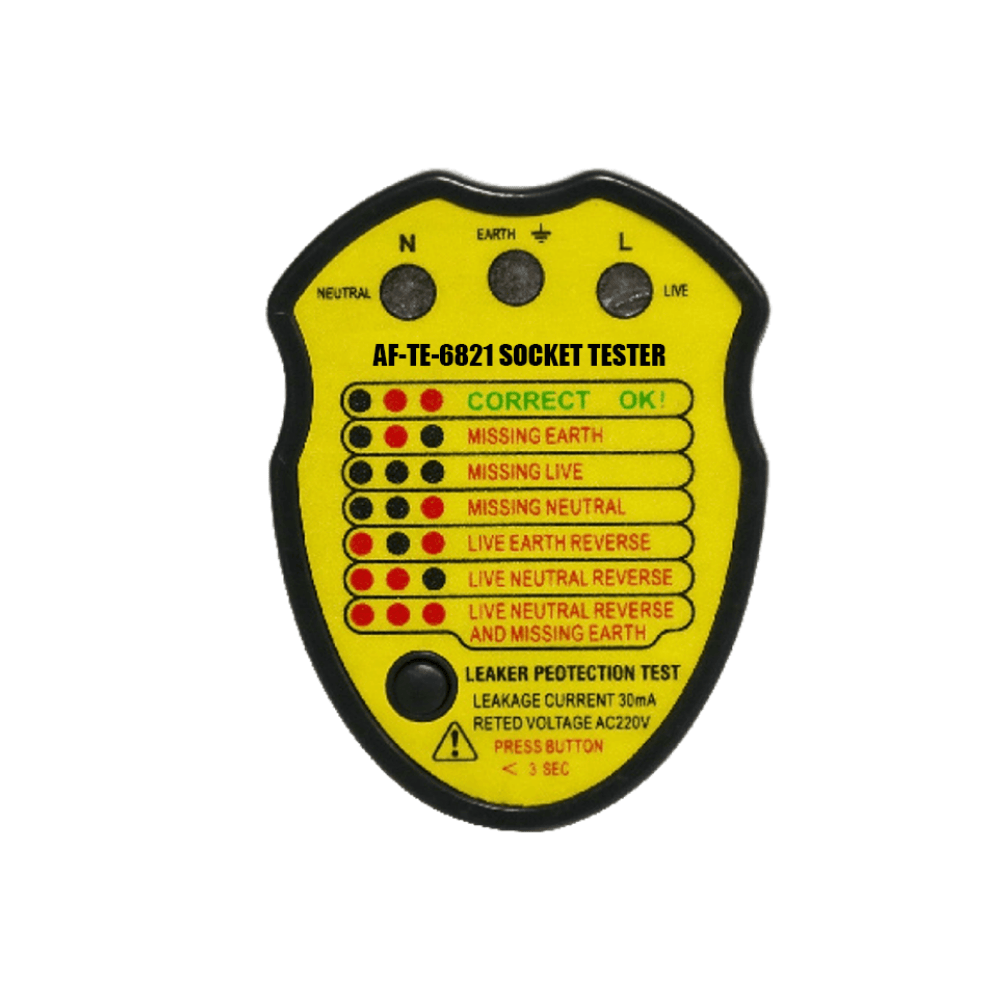

The AF-TE-6821 Socket Tester is a compact and efficient device for quickly checking electrical socket wiring. Designed for 220V systems, it helps identify common faults and ensures safe operation with a built-in RCD test function. Key Features: Quick detection of wiring faults Identifies missing earth, live, and neutral Detects live/earth and live/neutral reverse wiring Built-in 30mA RCD test for safety verification Simple and easy-to-use design Specifications: Model: AF-TE-6821 Application Voltage: 220V Frequency: 50/60Hz RCD Test: 30mA Package Includes: Socket Tester x1 User Manual x1 Box x1

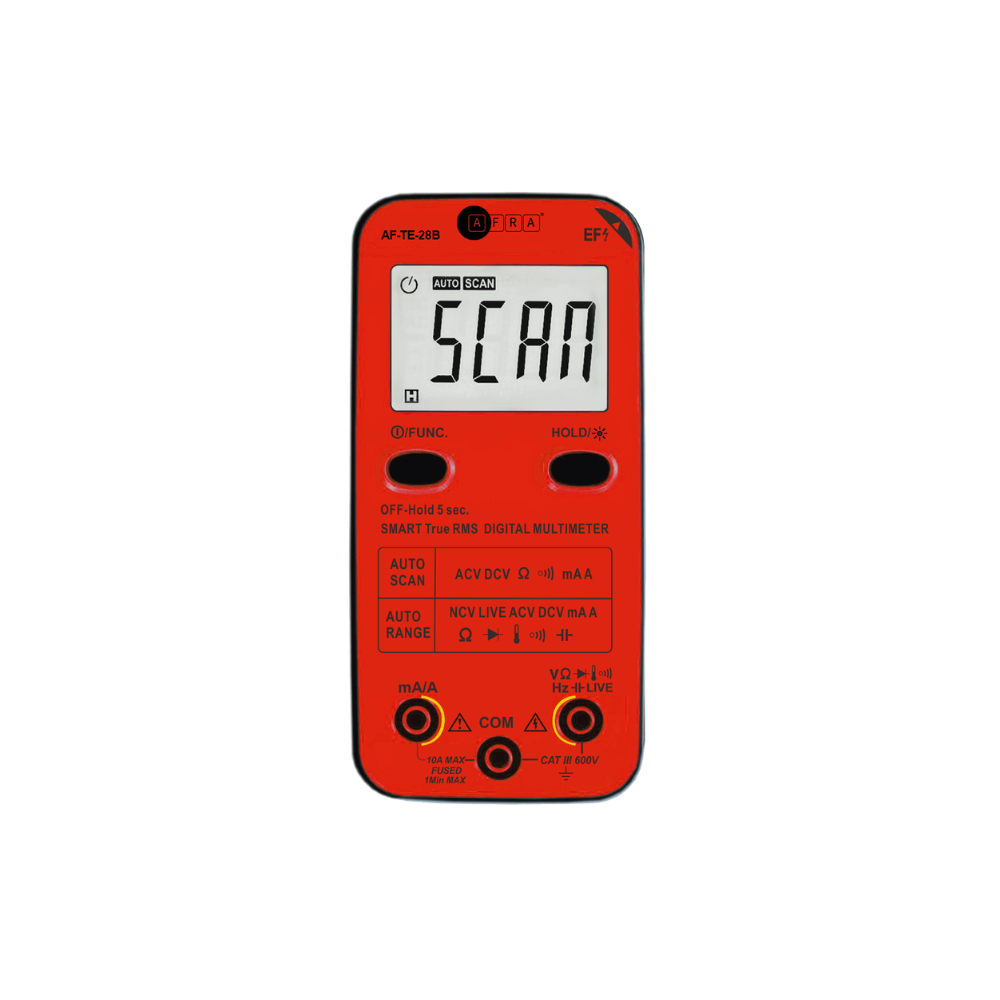

A compact and intelligent pocket multimeter designed for quick diagnostics, offering essential measurement functions with enhanced safety features like NCV detection and mis-plug protection. Key Features SMART POCKET DESIGN – Lightweight and easy to carry for on-the-go testing NCV & LIVE TEST – Detect voltage safely without direct contact MIS-PLUG ALARM – Prevents incorrect probe connections for added safety MULTI-FUNCTION TESTING – Measures voltage, current, resistance, capacitance, frequency, and temperature USER-FRIENDLY OPERATION – 4000 counts display with data hold and continuity buzzer Specifications AC Voltage: Up to 600V DC Voltage: Up to 600V AC Current: Up to 10A DC Current: Up to 10A Resistance: Up to 40MΩ Capacitance: Up to 4mF Frequency: Up to 4kHz Temperature: -200°C to 1200°C Display Counts: 4000

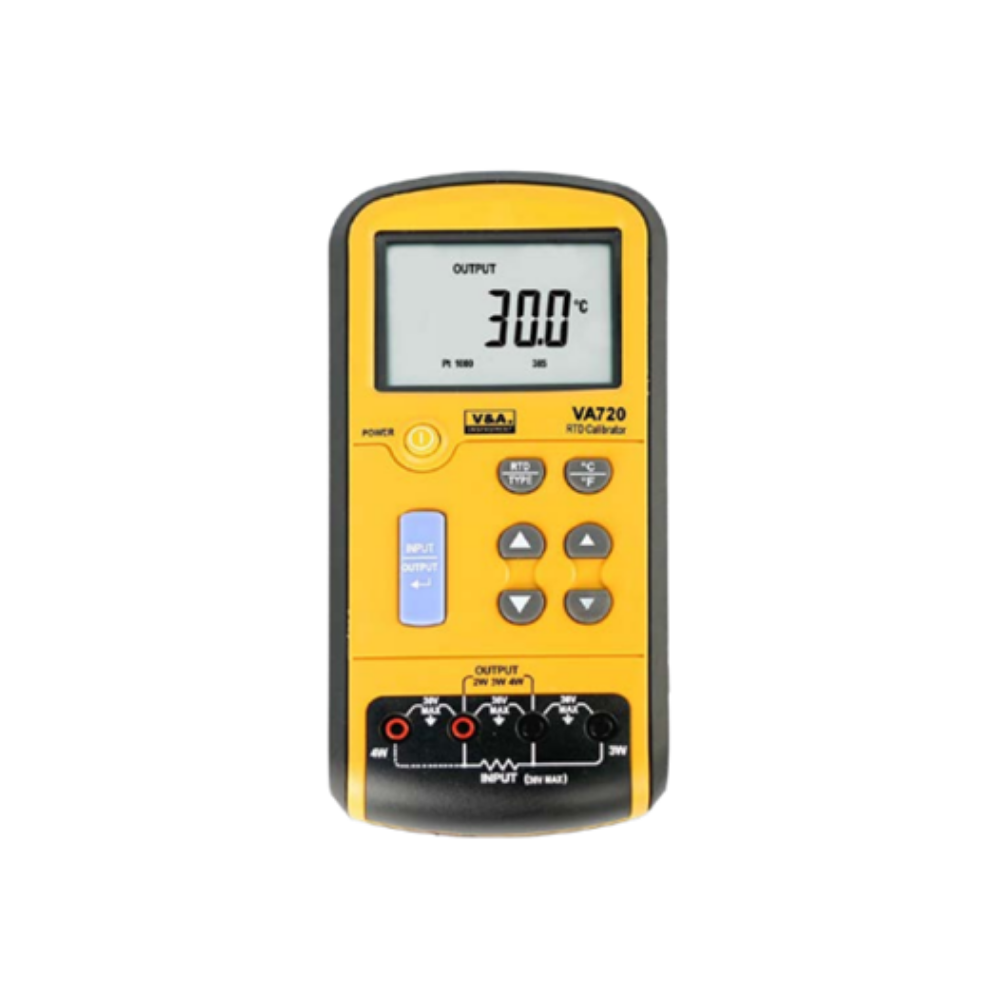

The AFRA AF-TE-720 RTD Calibrator is a precision instrument designed for accurate resistance and temperature calibration. Supporting multiple RTD types and offering high accuracy performance, it is ideal for industrial, laboratory, and field applications. Its dual display and user-friendly design ensure efficient and reliable calibration tasks.   Key Features WIDE CALIBRATION RANGE – Resistance up to 3200Ω and temperature from -200°C to 800°C MULTIPLE RTD SUPPORT – Select from 7 RTD types for flexible applications HIGH PRECISION PERFORMANCE – Accuracy up to ±0.2°C and ±0.1Ω DUAL LCD DISPLAY – Large 5-digit screen for clear and simultaneous readings CONTINUOUS OPERATION – External power supply support for extended usage Functions RTD Signal Measurement & Simulation Multi-Type RTD Selection High Accuracy Calibration Dual Display Monitoring External Power Support Package Includes Process Calibrator ×1 Test Leads ×1 Alligator Clips ×1 User Manual ×1 AAA Batteries (1.5V) ×6 Carry Bag ×1 Box ×1 Calibration Report

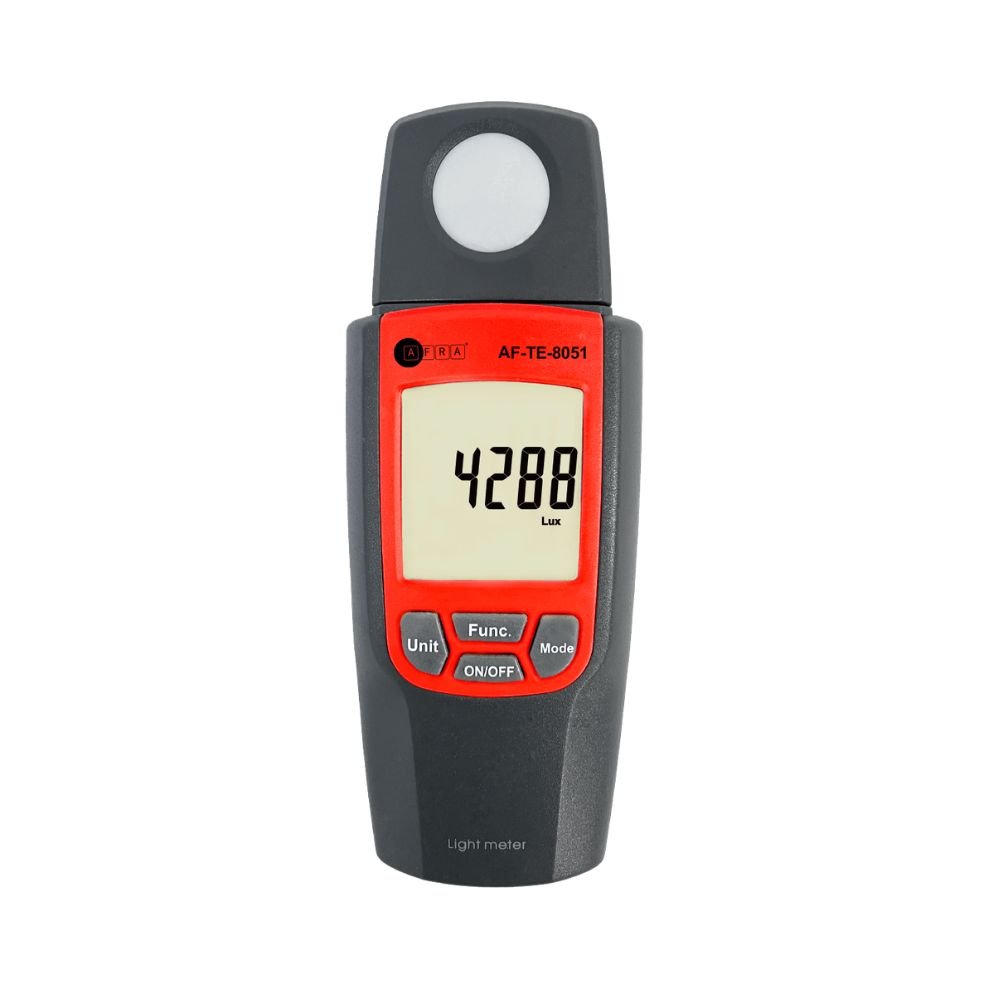

Short Description The AFRA AF-TE-8051 Light Meter is a precision instrument designed to measure light intensity with high accuracy. Featuring a rotary sensor head and wide measurement range, it is ideal for photography, industrial, and environmental lighting applications. Key Features WIDE LIGHT MEASUREMENT RANGE – Measures from 0 to 30,000 lux (0–2788 ftc) ROTARY SENSOR HEAD – Flexible positioning for accurate light detection HIGH ACCURACY PERFORMANCE – Reliable readings with ±(4% + 50) accuracy FAST SAMPLING RATE – Real-time updates at 2 times per second USER-FRIENDLY DESIGN – Backlit display, data hold, and auto power-off Specifications Measurement Range: 0–30,000 lux (0–2788.0 ftc) Accuracy: ±(4% + 50) Resolution: 1 lux / 0.1 ftc Max Display: 29999 Sampling Rate: 2 times/sec Operating Temperature: 0°C to 50°C (32°F to 122°F) Display: Backlit LCD Power Supply: 3 × AAA Batteries Package Includes Light Meter ×1 Protective Cover ×1 Carry Case ×1 Wrist Strap ×1
