Media : Liquid / Solid Ledge : 0 to 25 Mtrs. for liquid/50 Mtrs. for Solid Indicator : Digital Display Working temperature : -40 to 70° C Working pressure : -0.02 to 0.1 MPa Output : 4 to 20 mA/HART Power supply : 24 V DC ± 10% Ex. Proof : Ex ia lib t6 Protection Grade : IP66

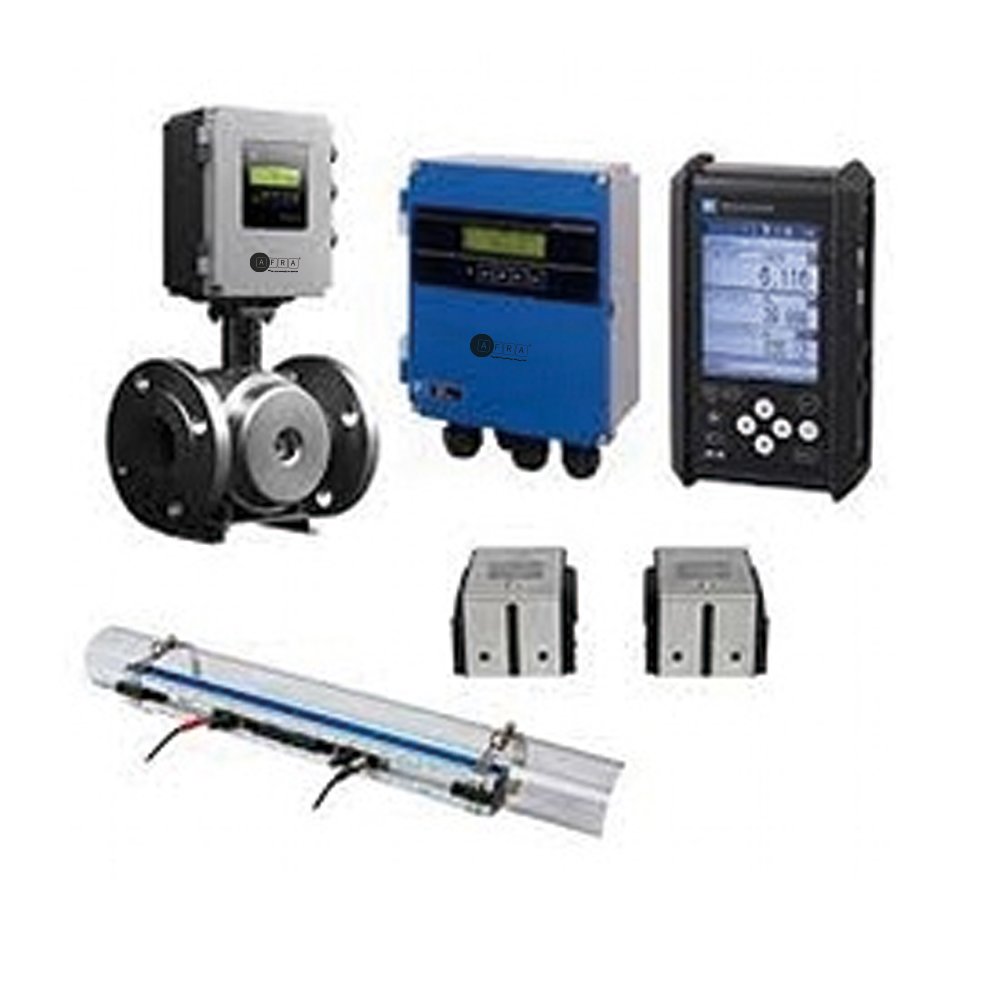

Linearity : 0.5% Repeatability : 0.2% Accuracy : ±1% of reading at rates>0.2 mps Response Time : 0-999 seconds, user-configurable Velocity : ±32 m/s Pipe Size : 20mm-6000mm

Size & Process Connection : DN4, 6, 10, 15, 20, 25, 32, 40; Thread connection, DN15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 200, Flange connection Accuracy/Range ratio : ±0.5%R; 1:10; 1:15; 1:20 Sensor Material : SS304, SS316(L) Output : Pulse ,4-20mA, HART Power Supply : A: +24VDC, for 4-20mA , pulse, RS485 output B: 3.6 V lithium battery, battery voltage: 2.0 V ~3.0 V

Dial Size : 100mm & 150mm Ranges : -1 to 0....0.6 to 600 bar Wetted Parts : SS 316L & Monel Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL 0.5 (Transmitter) Transmitter : 2 Wire, 24V DC Dampening Liquid : Dry, Fillable & Filled Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

Construction : Barstock Fabricated Connection : Threaded, Flanged, Vane Stone etc. Material : Alloy Steel, Stainless Steel, Duplex Steel, Nickel Alloys, Superalloys, Titanium, Tantalum

The AF-TE-8090 Thermocouple + Infrared Thermometer is a dual-function environmental measuring device designed for accurate temperature monitoring. It combines contact and non-contact measurement, making it ideal for industrial, HVAC, and maintenance applications. Key Features: Dual measurement: Thermocouple and infrared temperature sensing Fast response time with 0.5s sampling rate Max, Min, and Average value measurement 4-digit LCD display with backlight Data hold function for easy reading Fixed emissivity of 0.95 for reliable infrared readings Specifications: Model: AF-TE-8090 Thermocouple Range: -200°C ~ 1300°C (-328°F ~ 2372°F) Infrared Range: -50°C ~ 300°C (-58°F ~ 572°F) Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) Sample Rate: 0.5s Emissivity: 0.95 Package Includes: Thermometer x1 K-Type Thermocouple x1 Protective Cover x1 Protective Carry Case x1 Wrist String x1 User Manual x1 AAA Battery (1.5V) x3 Box x1

Connection : Fixed, Adjustable, Nipple, N-U-N, Flanged & Threaded Element : J, K, T, E, N, R, S, U, B Accuracy : Class 1 Sheath : Mineral Insulated Cable Sheath : SS 316, SS310, SS446, Inconel 600, Inconel 800 Enclosure : Aluminium, SS with IP65, IP66, IP67, IP68, Ex-proof, Flameproof, ATEX

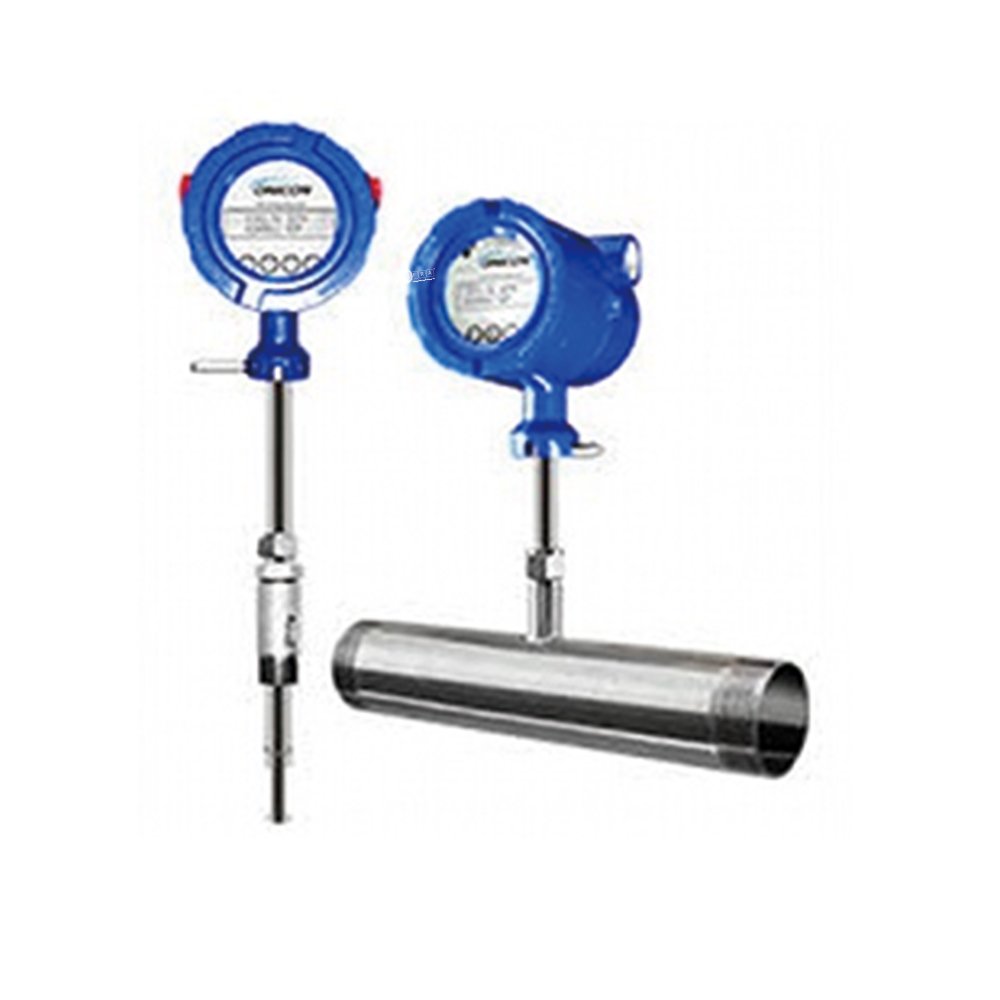

Medium : Gas (except acetylene) Pipe Range : DN100-DN4000, DN10-DN2000 Velocity : 0.1~120 Nm/s Accuracy : ±1% , ±2.5% Working Temperature : -40℃～+220℃ Working Pressure : ≤2.5 MPa, ≤4.0 MPa
