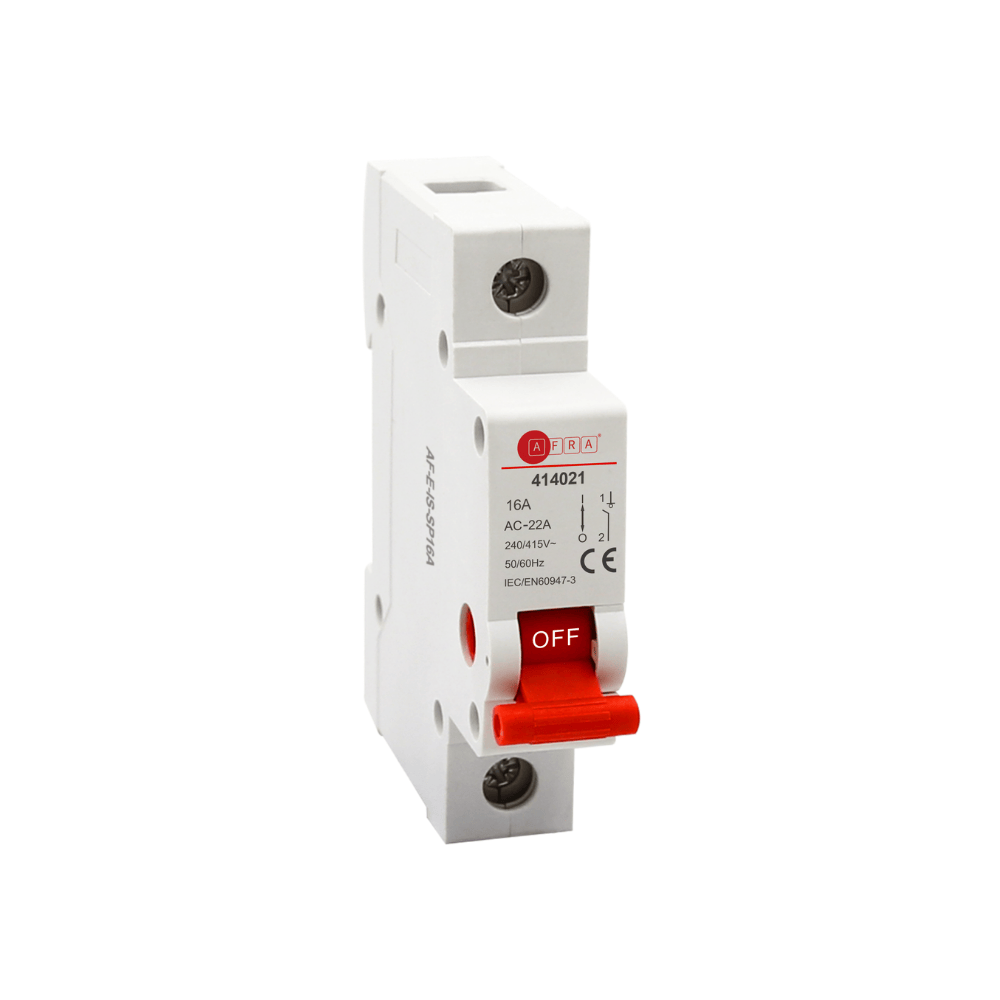

AFRA SP-16A 1P DIN Rail Mounted Isolator Switch designed for safe and efficient circuit isolation in residential, commercial, and industrial applications, rated for 230/400V AC systems with reliable performance. Key Features Brand: AFRA Type: Isolator Switch Model: SP-16A / AF-E-IS-SP16A Poles: 1P (Single Pole) Rated Current: 16A (Available range: 16A–125A series) Rated Voltage: 230/400V AC, 240/415V AC Utilisation Category: AC-22A Rated Short-Circuit Making Capacity (Icm): 5 kA (switch-disconnector alone) Rated Short-Time Withstand Current (Icw): 1500A Insulation Voltage (Ui): 250V AC Impulse Withstand Voltage (Uimp): 6000V Mechanical Durability: 8500 cycles Electrical Durability: 1500 cycles Tightening Torque: M6 – 3.5 N·m Protection Degree: IP20 (device), IP40 (in enclosure) Ambient Temperature: -5°C to 40°C Pollution Degree: 2 Compliance: EU RoHS Directive Compliant Mounting Type: DIN Rail Mounted Wiring: Upper and lower wiring compatible Standard: IEC/EN 60947-3

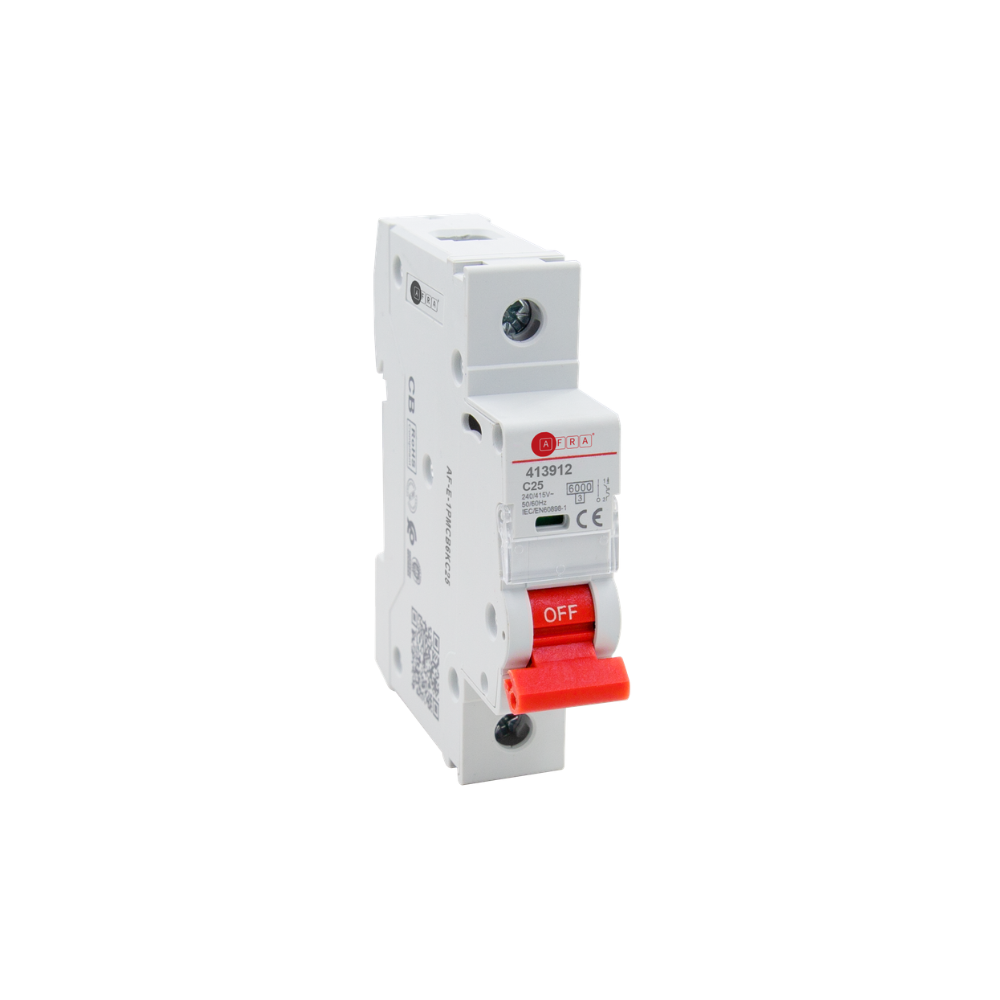

The AFRA Miniature Circuit Breaker TSB3-63 6kA 1P C25 is designed to provide exceptional protection for electrical circuits against overloads and short circuits. With a 25A rated current, this breaker ensures reliable and safe operation for a wide range of applications. It features thermal-magnetic trip unit technology and follows a C-type curve, making it ideal for circuits with moderate inrush currents. The breaker has a rated short-circuit capacity of 6000A for current values between 6A and 40A, and 4500A for currents between 50A and 63A, ensuring high protection levels. This thermal-magnetic MCB complies with the IEC/EN 60898 standard and provides durability with 10,000 mechanical durability cycles and 4,000 electrical cycles. Key Features: Rated current options: Available in 10A, 16A, 20A, 25A, 32A, and 40A for a wide variety of applications. High-rated short-circuit capacity: 6000A for In 6A to 40A; 4500A for In 50A to 63A. Thermal-magnetic trip unit technology: Provides

The AFRA Miniature Circuit Breaker TSB3-63 6kA 1P C32 is designed to offer reliable protection against overloads and short circuits in electrical circuits. With a 32A rated current, this breaker ensures safe operation in residential, commercial, and industrial applications. It features thermal-magnetic trip unit technology and a C-type curve, making it suitable for circuits with moderate inrush currents. The breaker provides a rated short-circuit capacity of 6000A for currents between 6A and 40A, and 4500A for currents between 50A and 63A, ensuring high protection levels. Compliant with the IEC/EN 60898 standard, it offers both mechanical durability of 10,000 cycles and electrical durability of 4,000 cycles. Specifications: Rated current: 10A, 16A, 20A, 25A, 32A, 40A Rated operational voltage: 240V (1P) Trip unit technology: Thermal-magnetic Curve code: C Rated short-circuit capacity (Icn): 6000A for In 6A to 40A 4500A for In 50A 63A Rated insulation voltage (Ui): AC 415V Rated impulse withstand

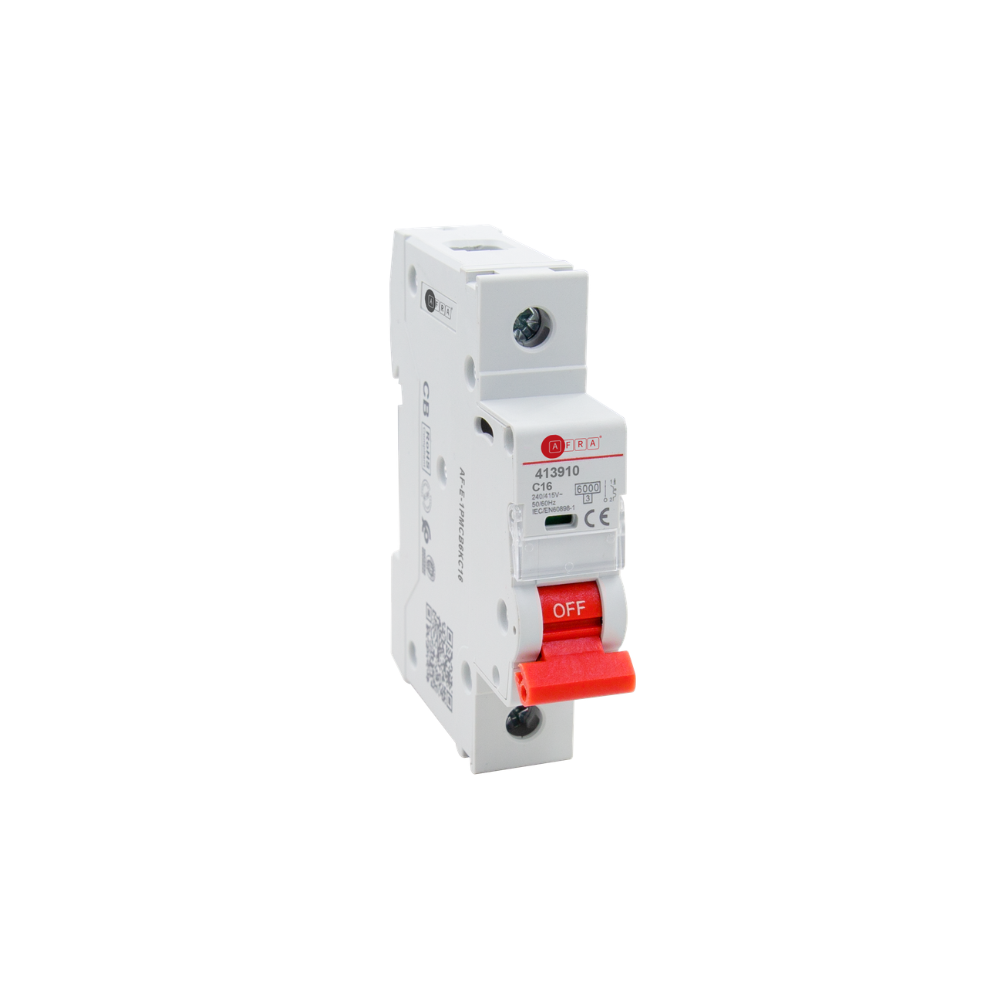

AFRA Miniature Circuit Breaker 6kA 1P C16 – Rated Current 16A, AC 230V, C-Type, IEC/EN 60898 certified. Specifications: Rated current: 10A, 16A, 20A, 25A, 32A, 40A Rated operational voltage: 240V (1P) Trip unit technology: Thermal-magnetic Curve code: C Rated short-circuit capacity (Icn): 6000A for In 6A to 40A 4500A for In 50A 63A Rated insulation voltage (Ui): AC 415V Rated impulse withstand voltage (Uimp): 4000V Mechanical durability: 10,000 cycles Electrical durability: 4,000 cycles Tightening torque: M5 2.5N.m II IP degree of protection: IP20 (conforming to IEC 60529) IP40 (modular enclosure) (conforming to IEC 60529) Ambient temperature: -5°C to 40°C Pollution degree: 2 (conforming to IEC/EN 60898-1) EU RoHS directive: Compliant

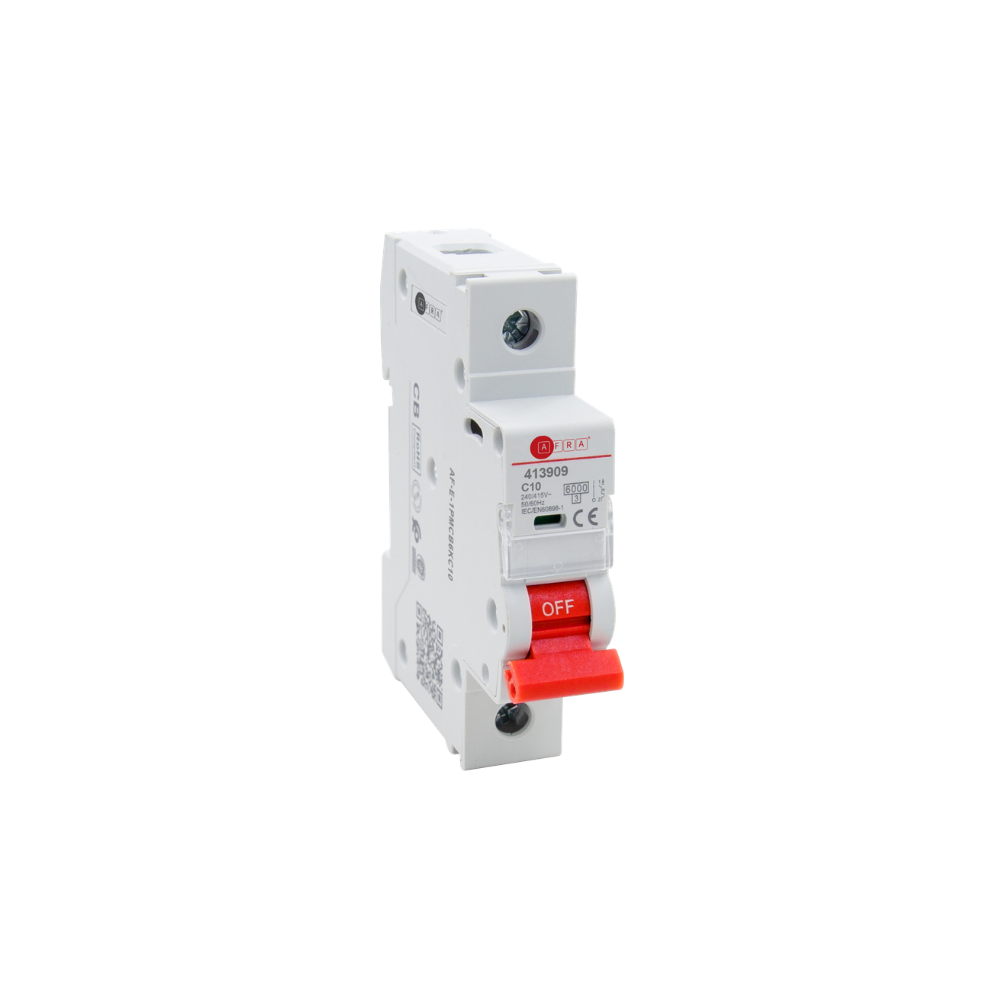

AFRA miniature circuit breaker 6kA 1P C10 – rated current 10A, 16A, 20A, 25A, 32A, 40A, AC 230V, C-type, IEC/EN 60898 certified. Rated current options: Available in 10A, 16A, 20A, 25A, 32A, and 40A for versatile application. High rated short-circuit capacity: 6000A for In 6A to 40A; 4500A for In 50A to 63A. Thermal-magnetic trip unit technology: Provides reliable overload and short-circuit protection. C-type curve: Ideal for circuits with moderate inrush currents. Insulation and impulse voltage: Rated insulation voltage (Ui) of AC 415V; impulse withstand voltage (Uimp) of 4000V. Durability: Mechanical durability of 10,000 cycles and electrical durability of 4,000 cycles. IP degree of protection: IP20 (compliant with IEC 60529); IP40 for modular enclosure. Environmental compatibility: Compliant with EU RoHS directive for environmental safety. Wide operating temperature: Suitable for -5°C to 40°C. Versatile wiring: Upper and lower wiring options for easy installation.

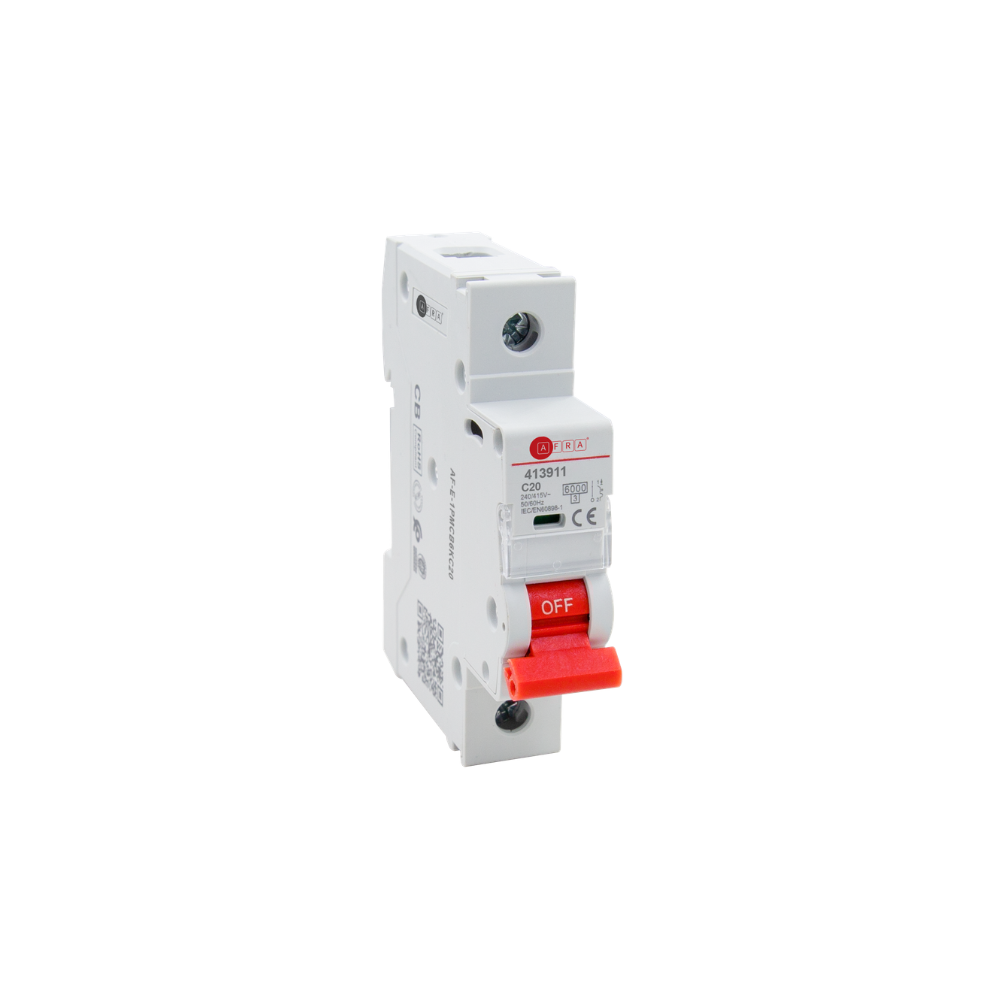

The AFRA Miniature Circuit Breaker TSB3-63 6kA 1P C20 is designed for providing reliable protection against overloads and short circuits in electrical circuits. With a 20A rated current, this breaker ensures safe operation for residential, commercial, and industrial applications. It features thermal-magnetic trip unit technology and offers a C-type curve, making it ideal for circuits with moderate inrush currents. The breaker boasts a 6000A rated short-circuit capacity for current values between 6A and 40A, and 4500A for currents between 50A and 63A. It complies with IEC/EN 60898 standards, ensuring dependable protection and durability. Specifications: Rated current: 10A, 16A, 20A, 25A, 32A, 40A Rated operational voltage: 240V (1P) Trip unit technology: Thermal-magnetic Curve code: C Rated short-circuit capacity (Icn): 6000A for In 6A to 40A 4500A for In 50A 63A Rated insulation voltage (Ui): AC 415V Rated impulse withstand voltage (Uimp): 4000V Mechanical durability: 10,000 cycles Electrical durability: 4,000 cycles Tightening

AFRA TSAS1-63 3P 63A DIN Rail Mounted Isolator Switch designed for safe circuit isolation in industrial and commercial electrical systems, rated for 415V AC operation with high reliability. Key Features Brand: AFRA Type: Isolator Switch Model: TSAS1-63 / AF-E-IS-TP63A Poles: 3P (Three Pole) Rated Current: 63A Rated Voltage: AC 415V Utilization Category: AC-23A/B Operational Power: 30 kW (3 Phase, 415V) Conditional Short-Circuit Current: 50 kA Insulation Voltage: 800V Impulse Withstand Voltage: 8 kV Wire Capacity: 2.5 – 35 mm² Mounting Type: DIN Rail Mounted Standard: IEC/EN 60947-3

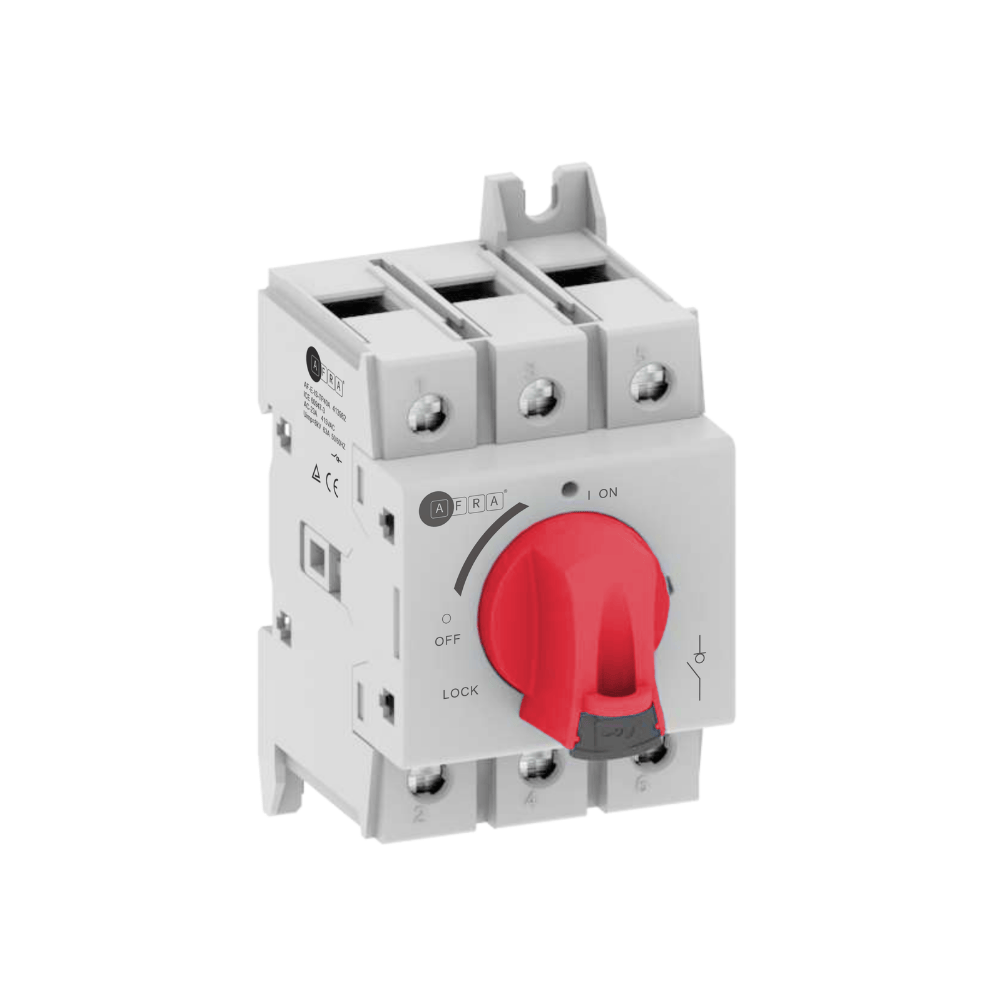

AFRA TSAS1-40 3P 40A DIN Rail Mounted Isolator Switch designed for reliable circuit isolation in electrical distribution systems, rated for 415V AC operation with durable industrial performance. Key Features Brand: AFRA Type: Isolator Switch Model: TSAS1-40 / AF-E-IS-TP40A Poles: 3P (Three Pole) Rated Current: 40A Rated Voltage: AC 415V Utilization Category: AC-23A/B Operational Power: 18.5 kW (3 Phase, 415V) Conditional Short-Circuit Current: 50 kA Insulation Voltage: 800V Impulse Withstand Voltage: 8 kV Wire Capacity: 1.5 – 16 mm² Mounting Type: DIN Rail Mounted Standard: IEC/EN 60947-3

AFRA TSAS1-25 3P 25A DIN Rail Mounted Isolator Switch designed for safe circuit isolation in electrical panels, suitable for 415V AC industrial and commercial applications. Key Features Brand: AFRA Type: Isolator Switch Model: TSAS1-25 / AF-E-IS-TP25A Poles: 3P (Three Pole) Rated Current: 25A Rated Voltage: AC 415V Utilization Category: AC-23A/B Operational Power: 11 kW (3 Phase, 415V) Conditional Short-Circuit Current: 50 kA Insulation Voltage: 800V Impulse Withstand Voltage: 8 kV Wire Capacity: 1.5 – 16 mm² Mounting Type: DIN Rail Mounted Standard: IEC/EN 60947-3
