Type : Isolation, Single Block & Bleed, Double Block & Bleed, Multiport Connection : BSPP, NPT etc. Material : Alloy Steel, Stainless Steel, Duplex Steel, Nickel Alloys, Superalloys, Titanium, Tantalum Pressure : 6000 psi, 10000 psi & 15000 psi etc.

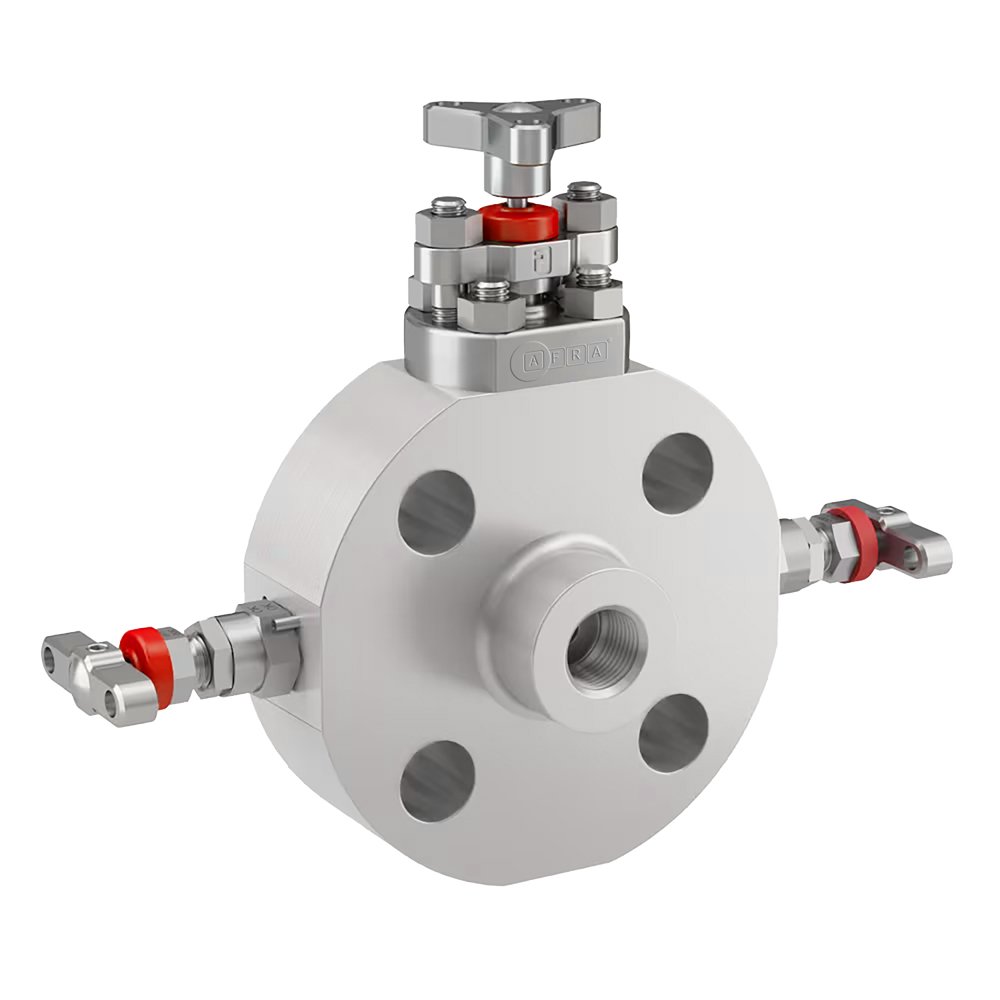

Type : Single Block & Bleed, Double Block & Bleed Connection : Flanged as ANSI, EN etc. Material : Alloy Steel, Stainless Steel, Duplex Steel, Nickel Alloys, Superalloys, Titanium, Tantalum Pressure : As per Flange size & rating

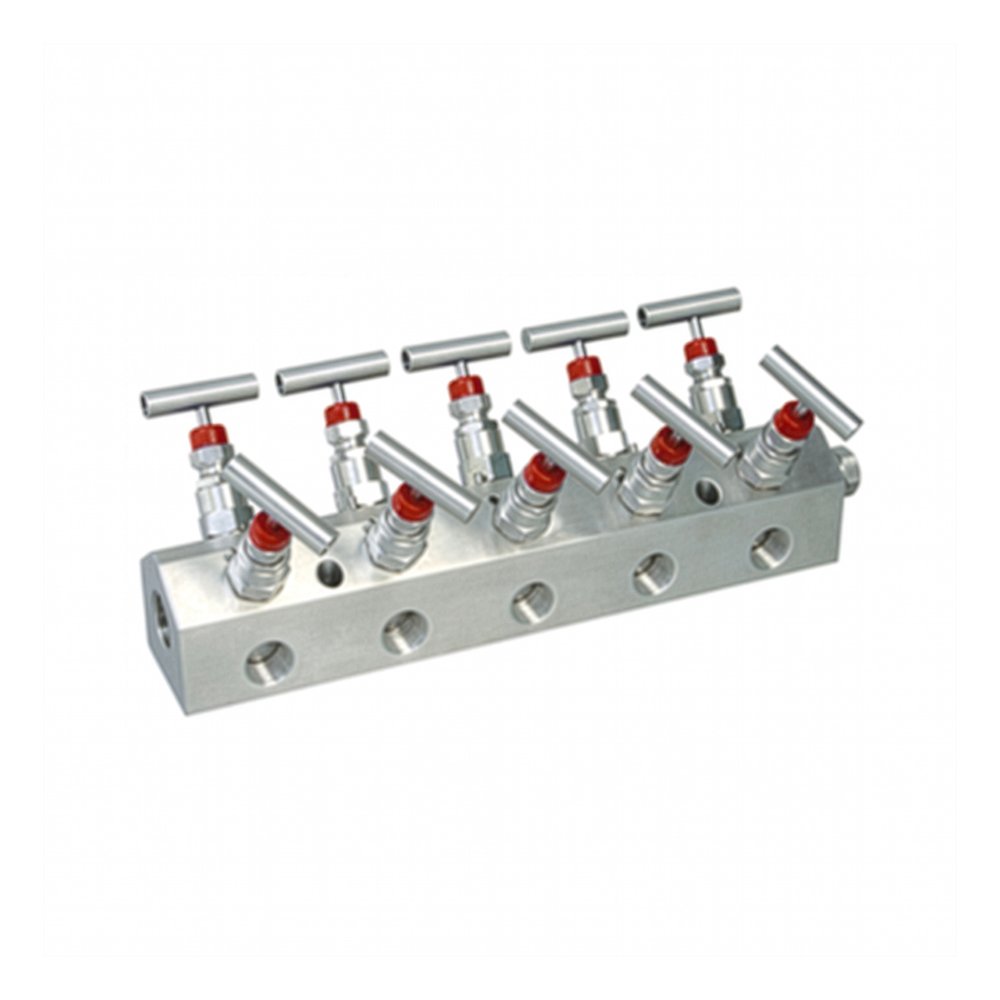

Type : 2-Way, 3-Way, 4-Way, 5-Way, Distribution Connection : BSPP, NPT, Coplanar etc. Material : Alloy Steel, Stainless Steel, Duplex Steel, Nickel Alloys, Superalloys, Titanium, Tantalum Pressure : 6000 psi, 10000 psi & 15000 psi etc.

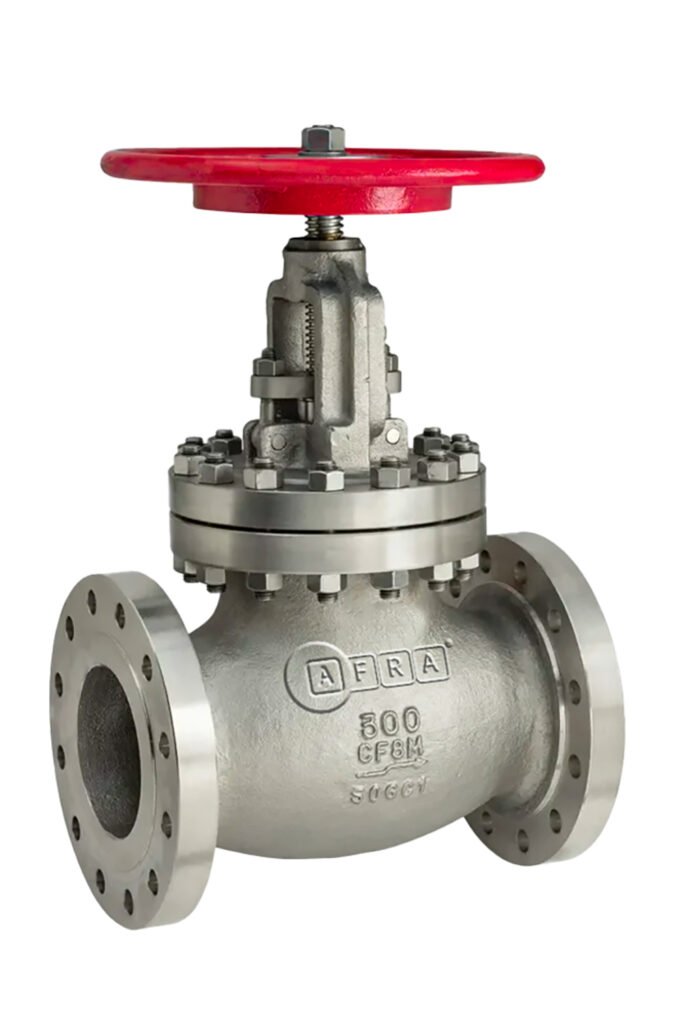

STANDARD Globe Valve Design Standard: BS 1873, ASME B16.34 Face to Face: ASME B16.10 End Connection: ASME B16.5, ASME B16.25 Inspection and Test: API 598 Visual Inspection Standard: API 6D MAIN FEATURES Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc or disk. In globe valves, the plug is connected to a stem which is operated by screw action using a handwheel in manual valves. Typically, automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly. Globe valve is mainly used to control the flow of fluid on the pipeline, that is partially or filly open or close. Globe

STANDARD Gate Valve Design Standard:API 600 Face to Face: ASME B16.10 End Flange: ASME B16.5 Inspection and Test: API 598 Visual Inspection Standard: MSS SP-55 Pressure Temperature:ASME B16.34 MAIN FEATURES Gate valve refers to the valve that opens and closes (Wedge) in the vertical direction of the medium flow direction (through the axis) to achieve opening and closing. The gate valve is mainly used as a cutting fluid on the pipeline, that is, fully open or fully closed. Gate valves could be used in low temperature, low pressure, high temperature and high pressure, and also could be used for a variety of different fluid depending on the valve material. The gate valve is opened and closed by the rotation of the stem nut (meaning the nut does not move the stem). MAIN CATEGORY BASIS Wedge Flexible wedge Solid wedge Bonnet Bolt Bonnet(BB) Pressure Seal Bonnet Welded Bonnet(WB or SWB) Operation:

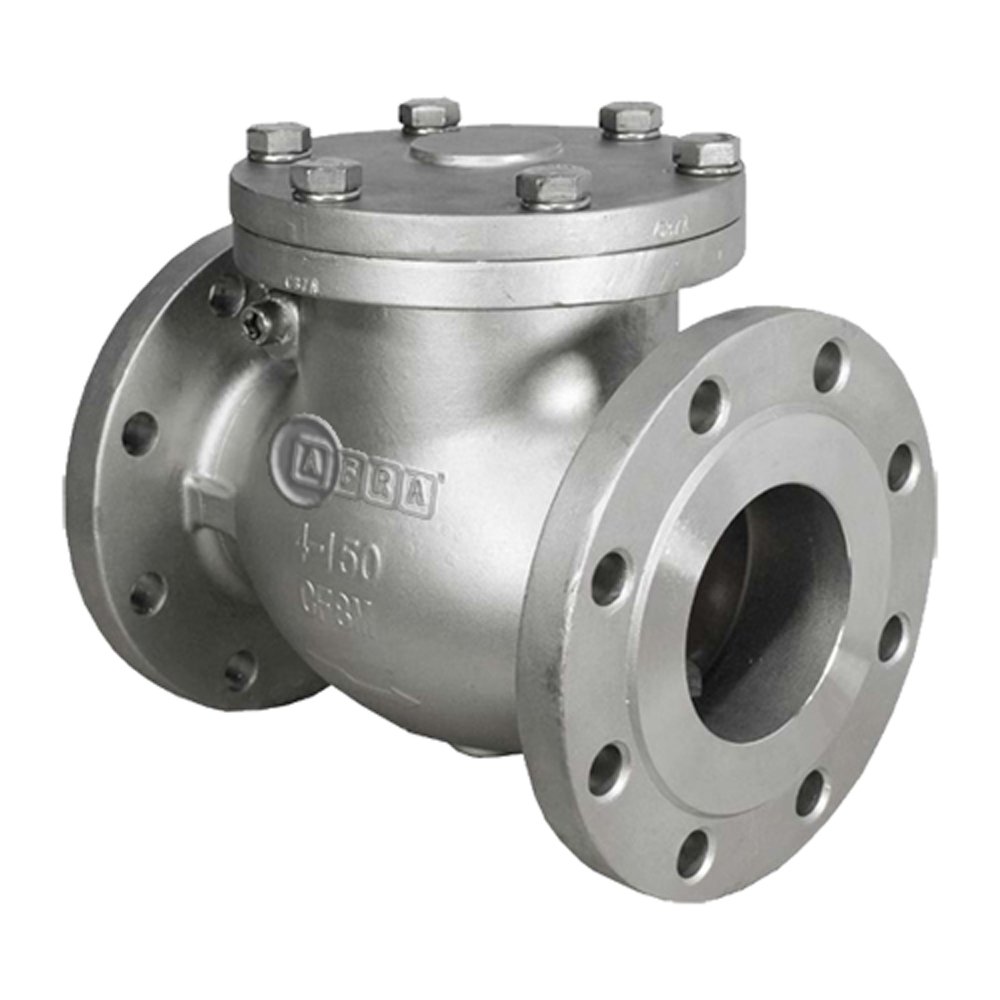

STANDARD Check Valve Design Standard: API 6D, API 594, ASME B16.34 Face to Face: ASME B16.10 End Connection: ASME B16.5, ASME B16.25 Inspection and Test: API 598 Visual Inspection Standard: API 6D MAIN FEATURES Check valves are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. An important concept in check valves is the cracking pressure which is the minimum differential upstream pressure between inlet and outlet at which the valve will operate. Check valve is mainly used to block the flow of fluid on the pipeline. Check valves could be used in different temperature and pressure depending on the process condition and could be used for a variety of different fluid depending on the valve material. MAIN CATEGORY BASIS Diaphragm Swing Operation: Automatic Class: 150 ~ 2500 Size Range: 2” ~ 50” Temperature: 196℃ ~ 593℃

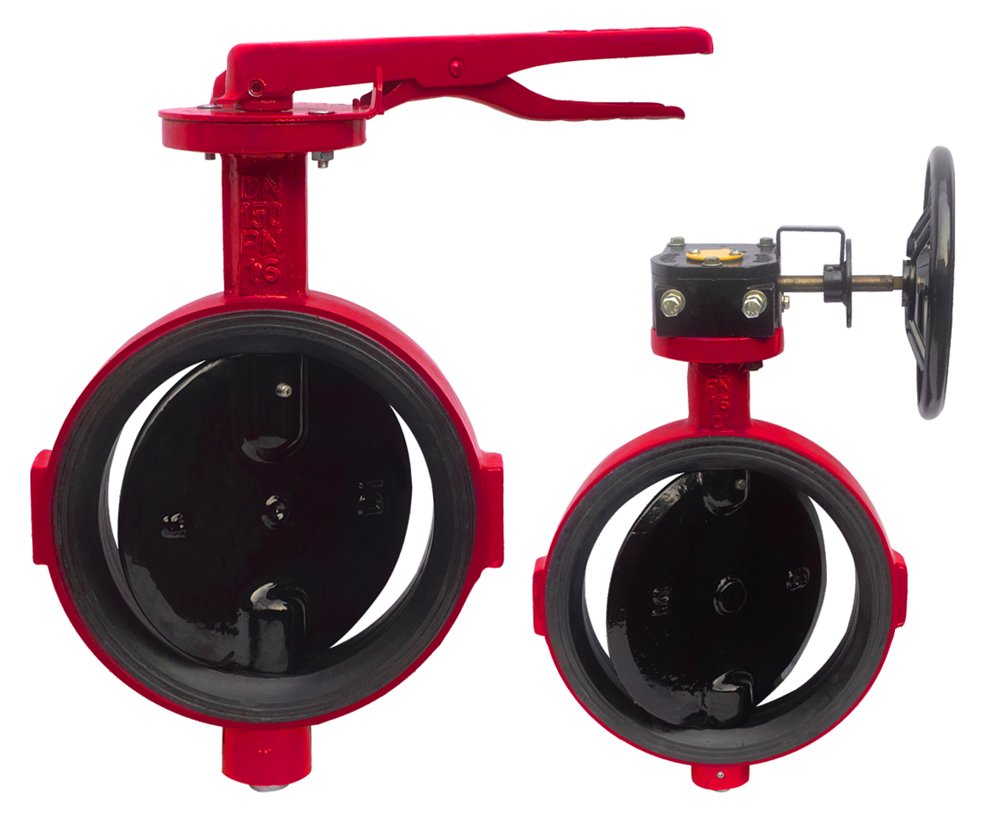

STANDARD Butterfly Valve Design Standard: API 609, ASME B16.34 Face to Face: ASME B16.10 End Connection: ASME B16.5, ASME B16.25, ASME 16.47 Inspection and Test: API 598 Visual Inspection Standard: API 6D MAIN FEATURES Butterfly valves are generally favored because they cost less than other valve designs and are lighter weight, so they need less support. The disc is positioned in the center of the pipe. A rod passes through the disc to an actuator on the outside of the valve. A butterfly valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod and completely blocks off the passageway. Butterfly valve is mainly used to restrict the flow of fluid on the pipeline, that is partially or filly open or close. Butterfly valves could be used in different temperature and pressure depending on the process condition
