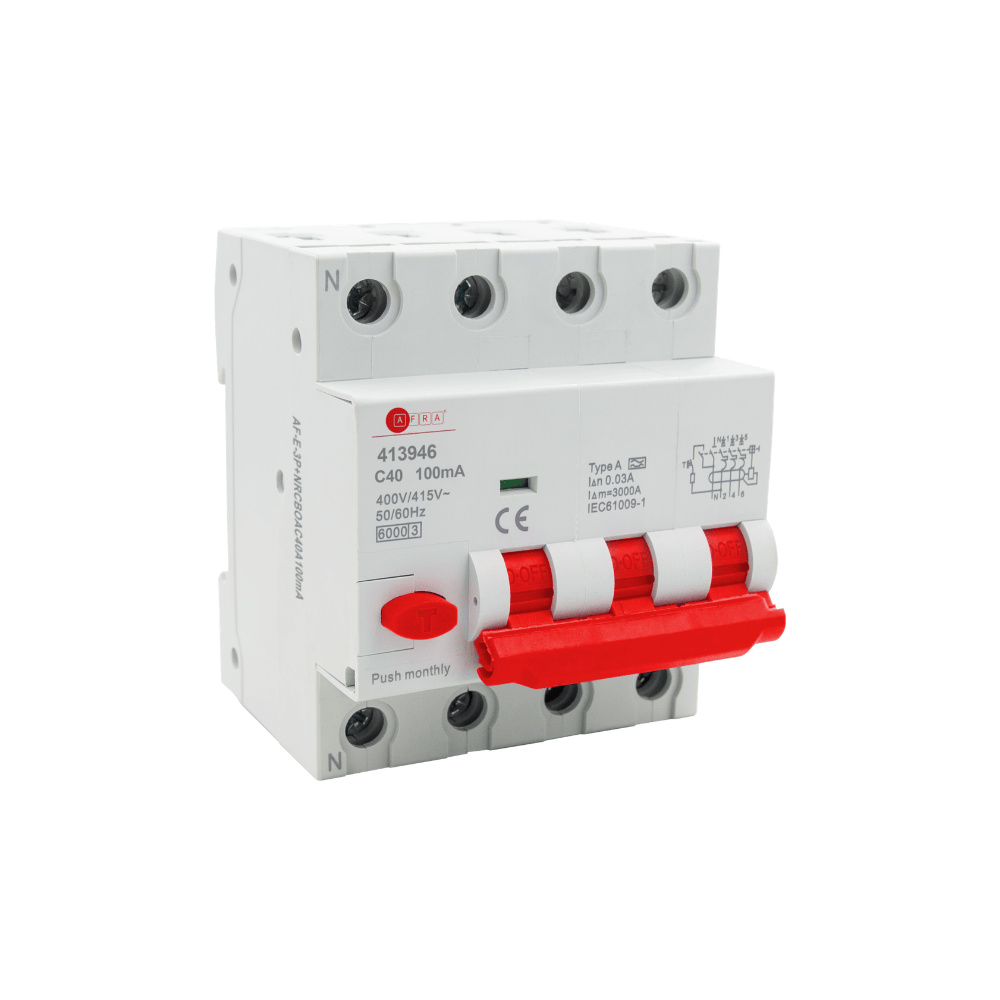

AFRA TSN9-63L 3P+N 40A RCBO provides combined overcurrent and residual current protection for three-phase electrical systems, ensuring safety against overload, short circuit, and earth leakage in industrial and commercial installations.
Key Features
- Brand: AFRA
- Type: RCBO (Residual Current Operated Circuit Breaker)
- Model: TSN9-63L / AF-E-3P+NRCBOAC40A100mA
- Poles: 3P+N (Three Pole + Neutral)
- Rated Current: 40A
- Rated Voltage: 400/415V AC
- Residual Operating Current: 100mA
- Curve Type: C Curve
- Network Type: AC
- Rated Short-Circuit Capacity (Icn): 6kA
- Residual Making & Breaking Capacity (IΔm): 3000A
- Residual Non-Operating Current (IΔno): 0.5 × IΔn
- Trip Technology: Electro-magnetic
- Standard: IEC/EN 61008-1
- Application: Overload, short-circuit & earth leakage protection for 3-phase systems
