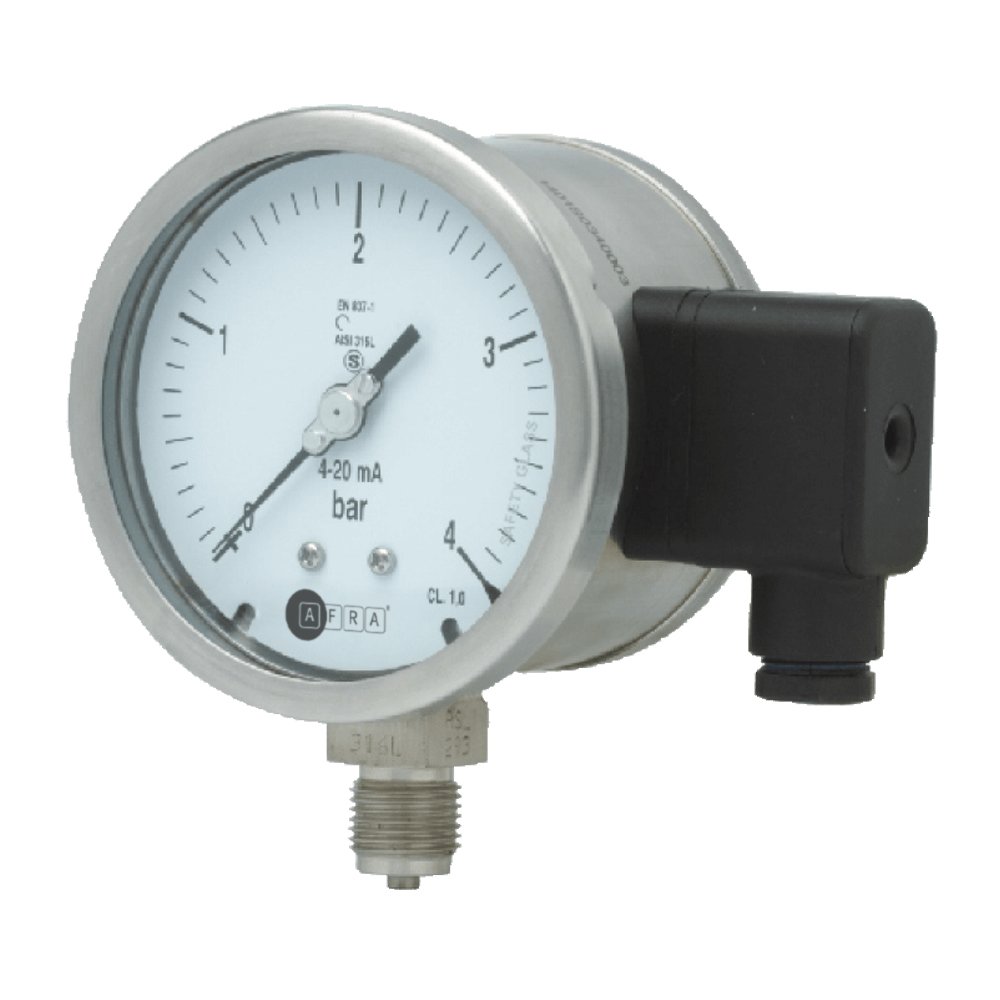

Dial Size : 100mm & 150mm Ranges : -1 to 0....0.6 to 600 bar Wetted Parts : SS 316L & Monel Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL 0.5 (Transmitter) Transmitter : 2 Wire, 24V DC Dampening Liquid : Dry, Fillable & Filled Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

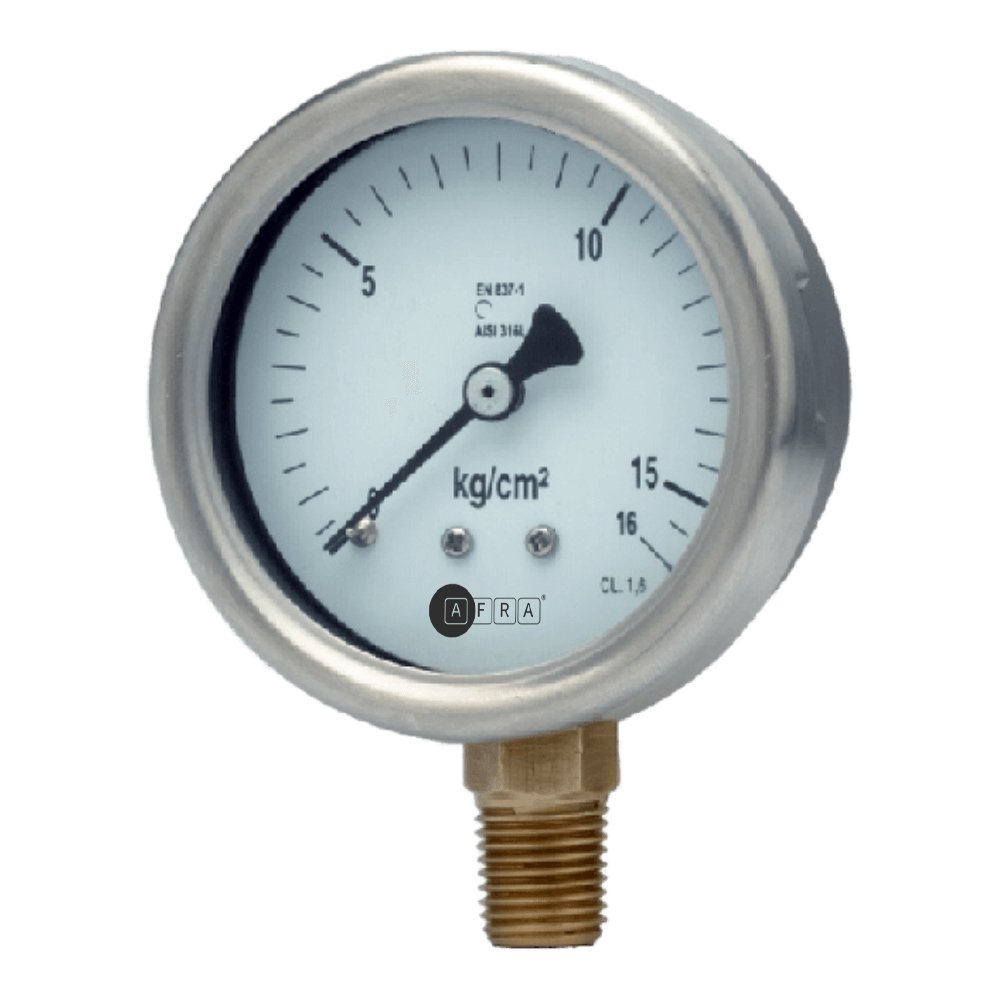

Dial Size : 40mm, 50mm, 63mm & 100mm Ranges : -1 to 0....0.6 to 700 bar Wetted Parts : Copper Alloy Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL1.6 & CL 2.5 Dampening Liquid : Dry, Fillable & Filled Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

Dial Size : 63mm, 100mm & 150mm Ranges : -1 to 0....0.6 to 2100 bar Wetted Parts : SS 316L & Monel Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL 0.5, CL 1.0 & CL 1.6 Dampening Liquid : Dry, Fillable & Filled Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

Dial Size : 4.5” Ranges : -1 to 0....0.6 to 2100 bar Wetted Parts : SS 316L & Monel Mounting : Bottom, Back and with mounting bracket accessories Stem Mounting : Accuracy : CL 0.5 Dampening Liquid : Dry, Fillable & Filled Standard followed : ANSI B40.1

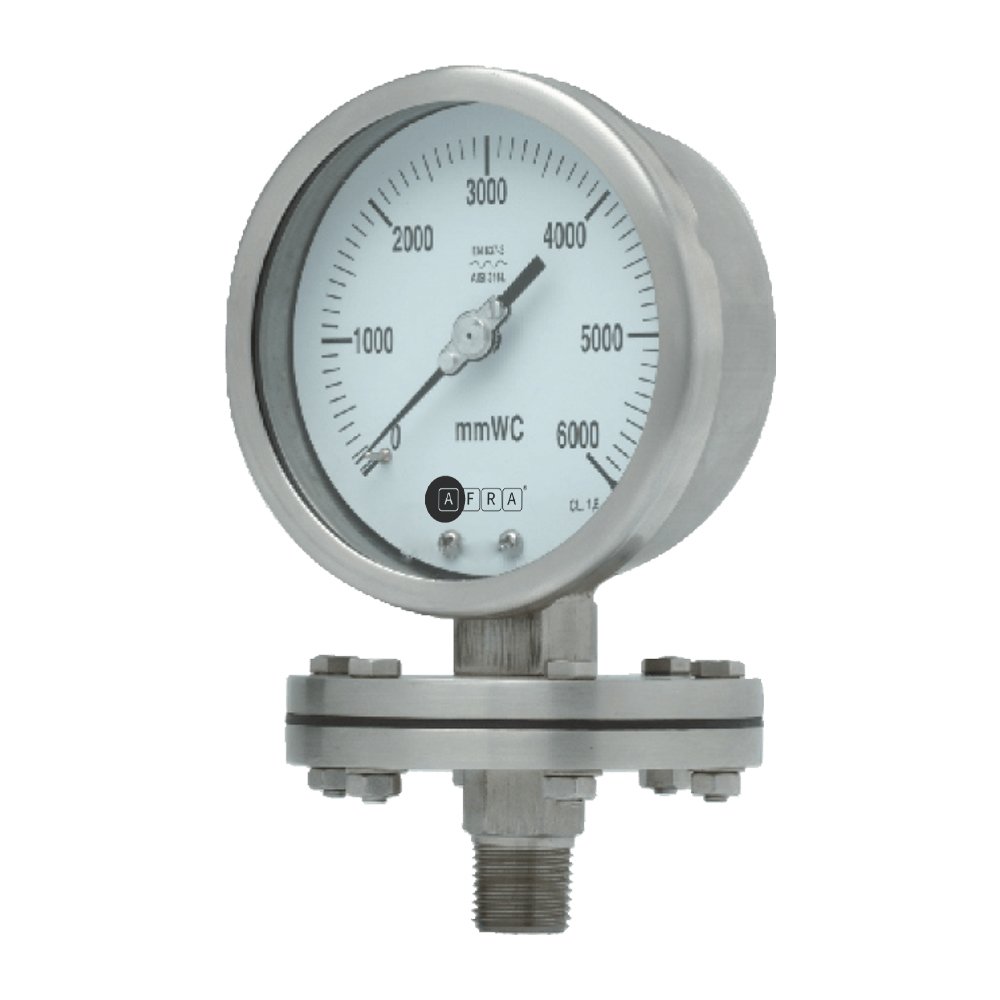

Dial Size : 100mm & 150mm Ranges : 1bar to 16bar & 0....250mmWC Wetted Parts : SS 316, Monel & Hastelloy 'C-276' Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL 1.6 Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

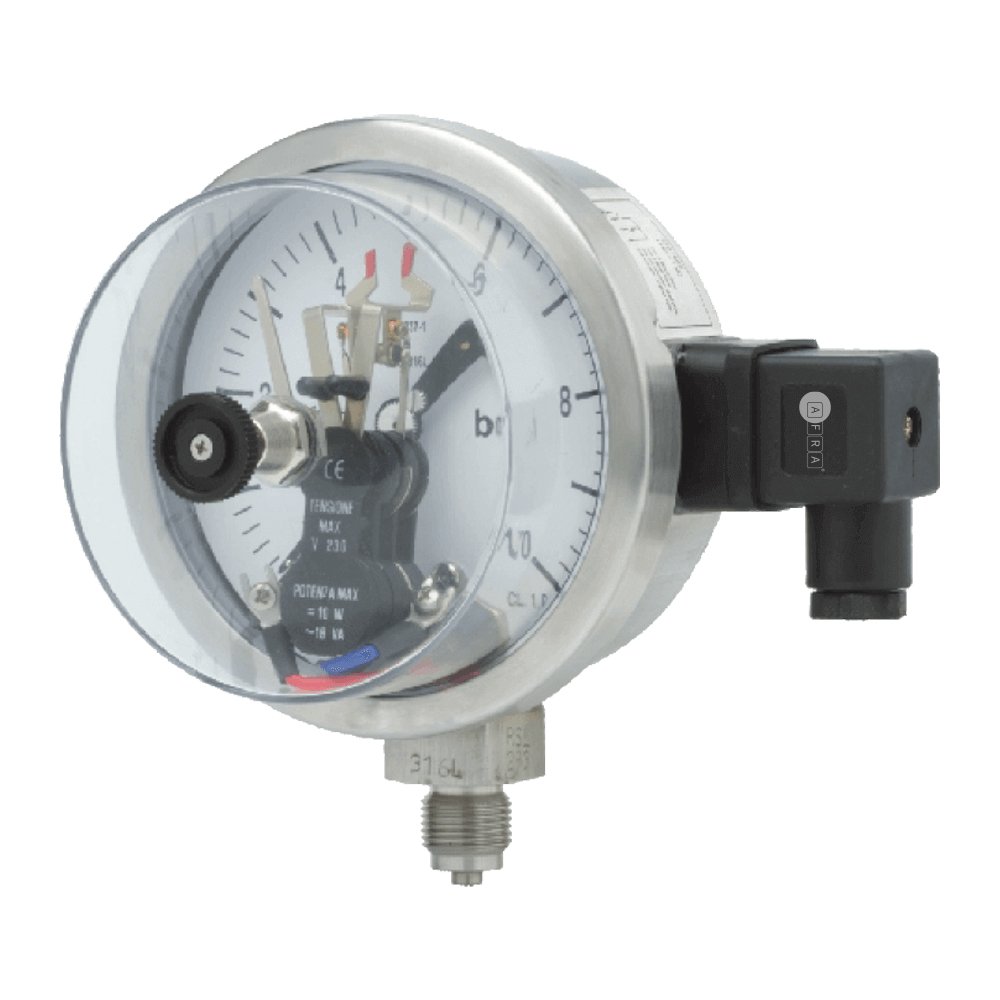

Dial Size : 100mm & 150mm Ranges : -1 to 0....0.6 to 2100 bar Wetted Parts : SS 316L & Monel Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL 0.5, CL 1.0 & CL 1.6 Dampening Liquid : Dry, Fillable & Filled Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards Contact Type : Magnetic Snap Action & ATEX Inductive Contact No. of Contacts : Single, Double & Triple Contacts for ON / OFF action

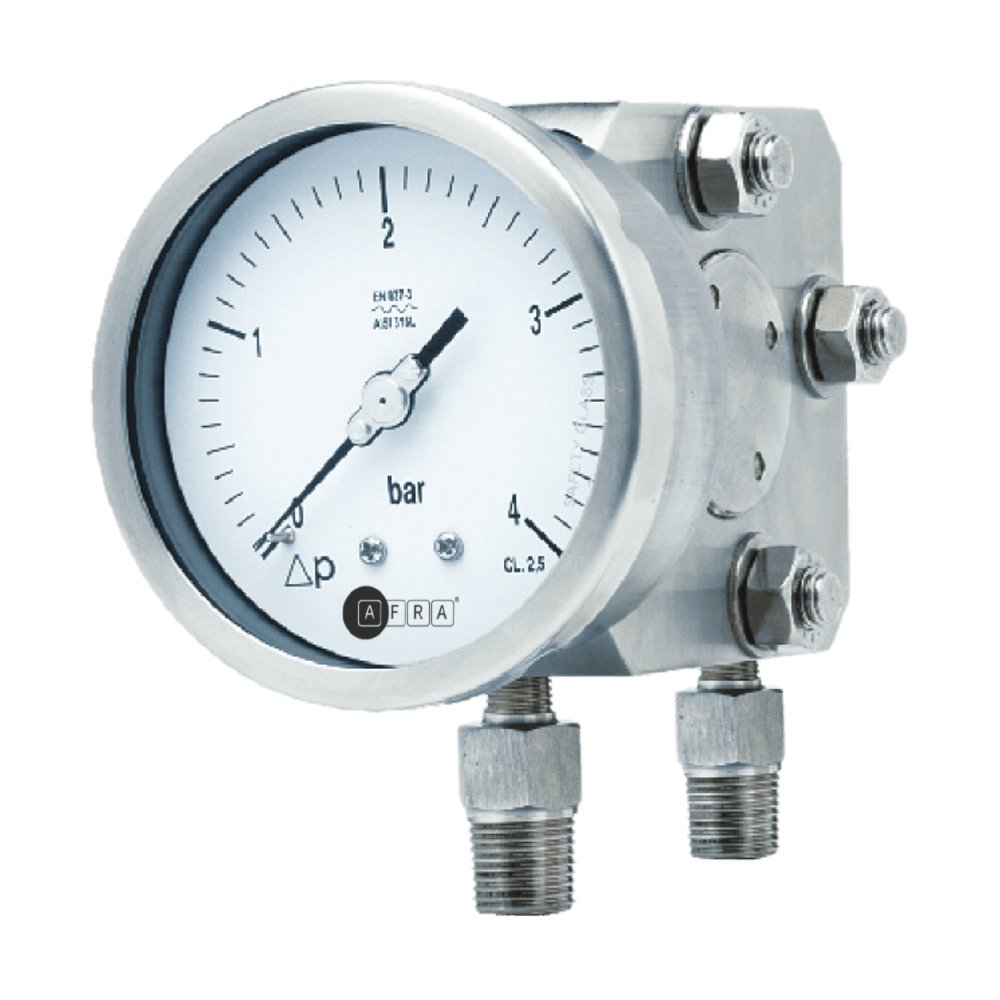

Type : Single & Double Diaphragm Dial Size : 100mm & 150mm Ranges : -6000mmWC to 0 250mmWC to 16bar Static Pressure : 60 bar (Single Diaphragm) & 100bar (Double Diaphragm) Wetted Parts : SS 316, Monel & Hastelloy 'C-276' Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL1.6 & CL 2.5 Standard followed : EN837-1, ANSI B40.1, IS 3624 S. other National / International Standards

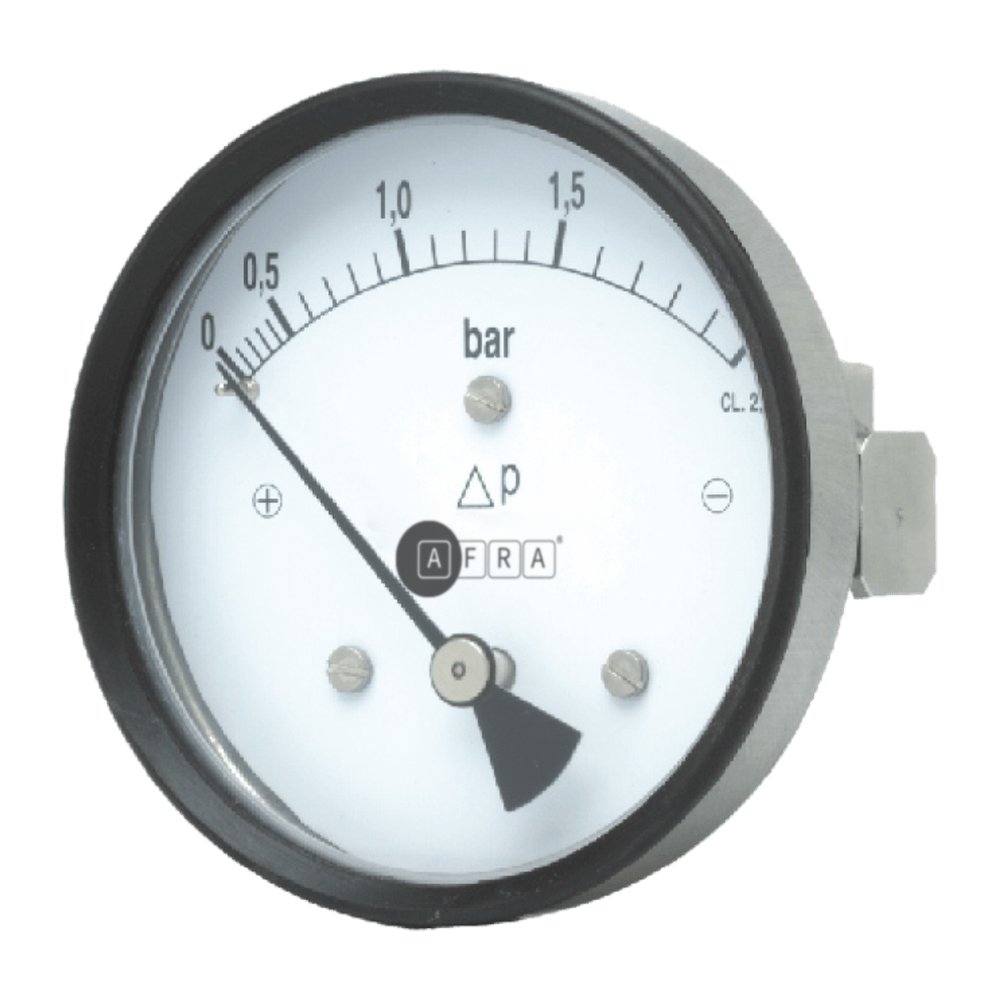

Dial Size : 63mm, 100mm & 150mm Ranges : 25mbar to 4bar 200bar Static Pressure : 200bar Wetted Parts : SS 316 Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL1.6 & CL 2.5
